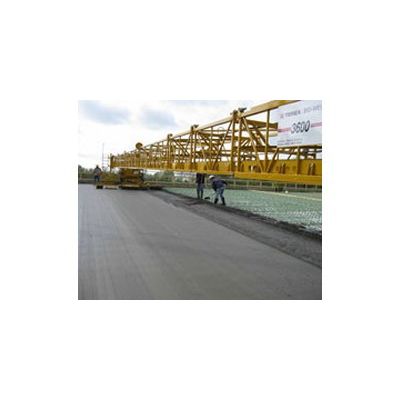

Bid-Well - Model 3600 -Bridge Pavers

• Truss depth: 36 in (0.91 m)
• Machine length: 36 ft (11.0 m), can be extended to 100 ft (30.5 m)
• Paving width: 96 ft (29.2 m) maximum – 15 ft (4.6 m) minimum
• 4 in (0.10 m) heavy-duty legs
• Four machine travel bogies with 3 ft (0.9 m) wheel base (two driver and two idler)
• Manual crown adjuster
• Operating weight: 6,100 lbs (2,767 kg)

• Dual strike-off augers with double flighting, meters concrete with each pass
• Patented Rota-Vibe®
• Turntable mounted for paving skewed decks without a crown
• Dual 4 ft (1.2 m) long paving rollers
• Paving roller rotation kit
• Adjustable finishing pan with burlap drag
• Paving carriage pivot cylinder

Two 20 HP (15 kW) Kohler Model CH20S air-cooled gas engines with 12-volt electric starters, one mounted on the frame at the operator`s station that drives the machine and carriage travel. The second is mounted on the carriage and drives the paving rollers and two augers. Optional—diesel engines

• Automatic machine move-up at the end of each paving carriage pass 0-12 in (0.37 m)
• Automatic cushioned paving carriage travel reversal
• Operator can stop and reverse carriage travel at any point

• Extension inserts available in 18 ft (5.5 m), 15 ft (4.6 m), 12 ft (3.7 m), 6 ft (1.8 m), 4 ft (1.22 m) and 3 ft (0.9 m) lengths
• Machine travel wheels: concave, flat-flanged or flat-flanged neoprene with removable flanges
• Skew bar kit (for paving skewed decks with a crown)
• Hydraulic-powered crown adjuster
• Hydraulic-powered paving roller lift kit
• Swing legs
• Four-wheel travel dolly with towing tongue
• Single internal concrete vibration system
• Paving carriage low-pressure fogging system
• Pressure washers (portable or machine-mounted)
• Leg-mounted on/off valve
