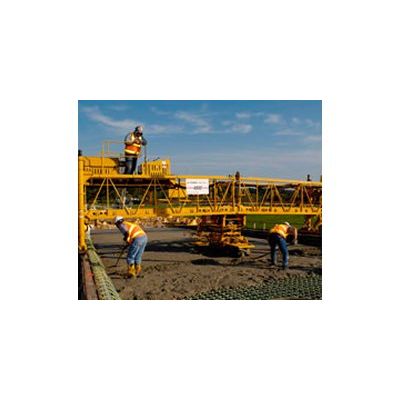

Bid-Well - Model 4800 -Bridge Pavers

• Truss depth: 48 in (1.2 m)
• Machine length: 36 ft (11.0 m) can be extended to 172 ft (52.4 m)—consult factory
• Paving width: 33.4 ft (10.2 m) maximum – 12 ft (3.7 m) minimum
• 6 in (0.15 m) heavy-duty legs
• Four machine travel bogies with 4 ft (1.2 m) wheelbase (two drivers, two idlers)
• Manual crown adjuster
• Operating weight: 7,600 lbs (3,447 kg)
• Sections are hinge-connected to adjust for flat or crowned configurations
• Easy-to-operate control console

• Dual 5 ft (1.5 m) long paving rollers
• Dual adjustable strike-off augers with double flighting meter
• Patented 11.5 in (.29 m) Rota-Vibe®
• Paving roller direction control valves
• Paving carriage pivot cylinder
• Automatic roller rotation kit
• Adjustable finishing pans with burlap drag or astro-grass
• Turntable mounting to allow for skewed decks without a crown
• Eight (8) bogied carriage rollers with hold-down rollers and side trust rollers
• Dual-chain carriage drive

Standard—Two interchangeable 23 HP (17.1 kW) gas engines with 12-volt electric starters, one mounted on the frame at the operator`s station that drives the machine and carriage travel. The second is mounted on the carriage and drives the paving rollers and two augers. Optional—diesel engines

• Total automatic machine operation
• Automatic machine move-up at the end of each paving carriage pass 0-15 in (.38 m)
• Automatic cushioned paving carriage travel reversal
• Operator can stop and reverse carriage travel at any point

• Extension inserts available in 18 ft (5.5 m), 15 ft (4.6 m), 12 ft (3.7 m), 8 ft (2.4 m), 6 ft (1.8 m), 4 ft (1.22 m), 3 ft (0.9 m) and 2 ft (.61 m) lengths
• Machine travel wheels: concave, flat-flanged or flat-flanged neoprene with removable flanges
• 4-wheel dolly with swivel top and towing tongue
• Powered crown adjuster
• Swing legs/offset legs
• High-pressure washer with 100 gal (387.5 L) tank, portable or machine-mounted
• Internal concrete vibration system
• Leg-mounted on-off valve
• Paving carriage fogging system
• Hydraulic-powered leg widening
• Neoprene wheels for greater traction
• Hydraulic powered paving carriage roller lift kit
• Skew bar kit (for paving skewed decks with a crown)
• Patented 15 in (.46 m) Rota-Vibe®
