Josmar - Model JM-038 -Buffer Tank

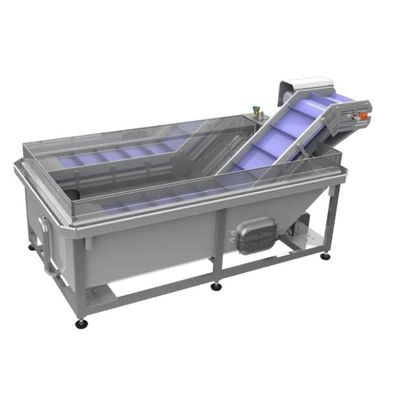

Designed to accumulate fish, cephalopods or crustaceans, with water, for their subsequent transport to the next processing stage. The tank has a rectangular shape, with an inclined base to facilitate its cleaning, and inside there is a plastic modular belt conveyor that extracts the product from the hopper, transferring it in a controlled way to the next phase of the process.
EQUIPMENT FUNCTION
To remove the accumulated fish or cephalopods from the buffer tank with water inside, the motor of the product extraction conveyor is started, removing product from the inside of the tank and transferring it to the next process phase.
The amount of product extracted is regulated by adjusting the speed of the extraction conveyor and the stop/start sequence. These parameters are set in the control panel.
ACCUMULATION TANK
- Rectangular shape with angled base.
- Sanitary tank doors on the side walls of the tank to facilitate cleaning and maintenance of the equipment.
- Filling and water drainage valves.
- Structure built in AISI-316 stainless steel plate.
- Supports built with tubular profiles adjustable in height for correct levelling.
EXTRACTION CONVEYOR FOR THE DEFROZEN PRODUCT
- Conveyor for the extraction of the fish from INTRALOX modular plastic belt with pushers. PE material.
- Hydraulic or electric motor, with adjustable speed and start/stop times.
- Built in stainless steel quality AISI-316, and plastics approved for use in contact with food.
DIMENSIONS
- Built to measure and according to the needs of the project.
