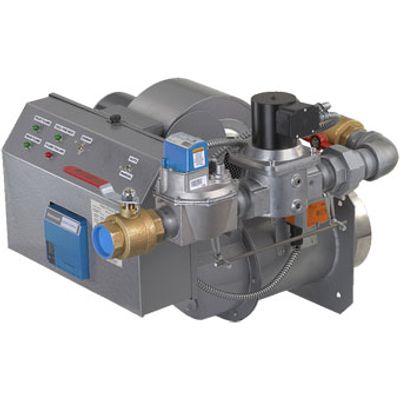

Unipower - Model MPG Series -Burners for Efficient Combustion
The Unipower MPG Series burners are engineered to maximize combustion efficiency. Central to this performance is the burner gas manifold coupled with a stainless steel retention plate, ensuring thorough mixing of gas fuel and combustion air. These burners come equipped with a 120V electronic microprocessor flame safeguard, with optional UV sensing, all factory assembled and fire tested to ensure readiness. They feature on-off burner styles with a slow opening diaphragm gas valve and fixed air shutter, while offering Hi-Lo-Off firing or modulation capabilities for versatile applications. The MPG GB model includes a 24-volt electronic intermittent pilot ignition and self-diagnostic capability employing flame rectification. Particularly suited for OEM models, they come with unassembled valve trains and optional welded flanges. Designed to handle both natural gas and propane, the Unipower MPG burners exhibit significant input ratings ranging from 150,000 BTU/hr to 2,500,000 BTU/hr, catering to varied operational needs.
The MPG series of gas burners have been developed with modular construction to make them adaptable to many applications. The burners have been UL and UL-C approved. We can provide optional valve trains and controls to meet ASME CSD-1, Factory Mutual, NFPA and GAP (formerly IRI) specifications.
At the heart of the MPG burner efficiency is the innovative burner gas manifold and its stainless steel retention plate, precision engineered to thoroughly mix gas fuel and combustion air for increased combustion efficiency.
The MPG series comes standard with a 120V electronic microprocessor flame safeguard and flame rod sensing or is available with optional UV sensing. The standard product is completely factory assembled and fire tested. The standard burner style of firing is on-off with slow opening diaphragm gas valve and fixed air shutter. We have available Hi-Lo-Off firing or 3-1 and 10-1 turndown modulation capabilities. For OEM models, we offer numerous options as well as unassembled valve trains and welded flanges to fulfill many application requirements.
The Unipower MPG GB burners are provided with a 24 volt electronic intermittent pilot ignition module with self-diagnostic features employing the flame rectification of flame detection. A 120 volt ignition transformer insuring reliable pilot ignition is standard.
- Inverted blower on bottom
- Unassembled valve train
- Stripped burner basic non-UL
- Single or dual motorized main gas valves
- High and or low gas pressure switches
- Large control cabinet with indicating lights burner mounted or remote mount
- 240 volt motor with contactor
ASME CSD-1, Factory Mutual, GAP, NFPA components on request
(120 Volt MPG Burners Only)
- On-Off low fire start
- Hi-Lo-Off low fire start
- Fully modulating 3-1 turn down
- Fully modulating 10-1 turn down
- Modulation input signal 135 ohm,
4-20mA or 0-10 volts DC
The MPG burners can be built to specific customer requests. For options not listed contact our sales team.
