SYSCON Sensors - Model CC-1 -Calibration Checker

FromSYSCON SENSORS, Division of SYSCON International, Inc.

SHARE

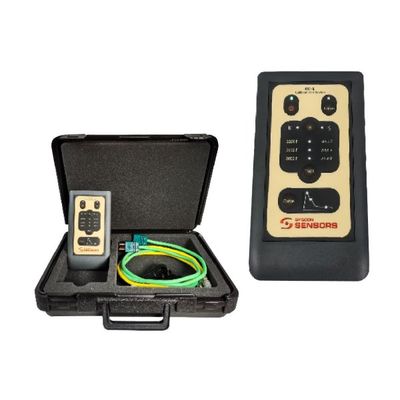

SYSCON Sensors CC-1 provides quick and accurate calibration checking for Pyrometers and Lab analyzers. The device generates cold-end compensated voltages corresponding to three standard temperatures and includes lance resistance check functionality. A standard curve can be generated to plot on an FL-1, Quick-Lab Datacast, or similar cooling curve lab analyzer. Includes test leads, battery charger, and protective case.

Most popular related searches

laboratory analyzer

mechanical switch

temperature sensor precision

temperature sensor

calibration standard

Easy to operate Lance Check, Temp Check, and Curve Simulation features
Includes standard S and K type test leads and plugs
Toggle between S and K type output
High precision DAC and cold-end temperature sensor generate precise microvolt output
High overall instrument accuracy of ± 1.8°F (± 1°C)
Color coded LEDs to indicate output status
+/- 50 hours of runtime on full charge
Automatic power shut-off after 5 minutes
Smart charging circuit with overload and temperature protection
IP 65 and UL 94 V-0 rated case – no mechanical switches
Protective storage case included

Output : Dual Thermocouple Output
Thermocouple Type : S, K
Calibration Standard : IPTS 48, 68, 90
Operating Mode : Lance check, Temp Check, Curve Simulation
Instrument Accuracy : ±1.8 °F (±1°C)
Operating Temperature : 32°F - 140°F (0°C - 60°C)
Ambient Humidity : 0 – 90% Non-Condensing
Battery : Li-Polymer 3.7 V 2500 mAh
Battery Charger : 100 - 240 V 60 Hz AC Input, 5V 1 A DC Output
Charging Time : 150 minutes (0 – 100% charge)
Housing : IP 65 AND UL 94 V-0 rated box
Storage Temperature : 0°F - 185°F (-17°C - 85°C)
