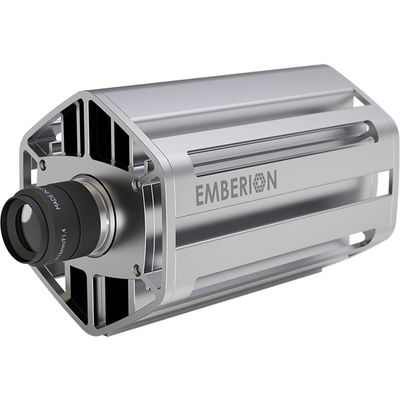

Emberion
Most popular related searches
- Wavelength: 400 – 2000 nm
- VGA resolution: 640 x 512 pixels
- Pixel size: 20 x 20 µm
- Max Frame Rate: 100 fps
- TEC: thermo-electric temperature control
- Lens Mount type: C-mount
- +12 Vdc (power source included)
- Camera Link, one cable, SDR
- Dimension of the camera: 169 x 101 x 110 mm
- Weight of the camera: 1.5 kg
- Software: graphical PC user software
- Capable of firmware updates
- Lens can be recommended *
- the camera with a C-mount body cap
- a universal power source with the camera side cable 36 W / +12 Vdc
- user software on a USB3 memory stick for Microsoft Windows 10
- Main cable (IEC) included for power source: please check adapter for country specific requirement (EU, US, UK or others)
- a Camera Link frame grabber board with its user software and/or drivers
- Base Configuration
- one connector
- a Camera Link certified cable, an SDR connector for the camera
- a C-mount lens
- a USB-C cable for firmware updates
