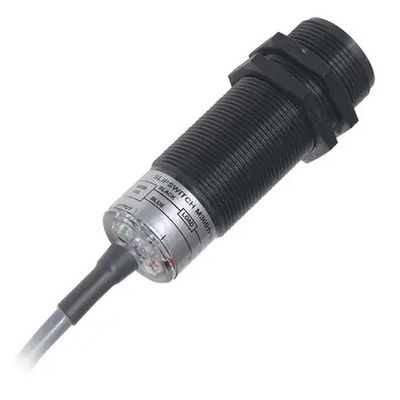

4B Binswitch Elite - Model BSE12V10AI, BSE15V10AI -Capacitance Point Level Indicator
From4B Africa
Detects level or plug situations for bulk granular solids or liquids in tanks, bins, or silos and can be used as a plug or choke detector in chutes, conveyors and elevator legs.
More about this product— External link
Most popular related searches
level indicator
chain conveyor
capacitance probe
bucket elevator
belt conveyor
screw conveyor
bucket conveyor
chain bucket elevator
tank level monitoring
level monitoring system
- Capacitance probe; detects the presence or absence of liquids and free flowing bulk granular materials and powders such as grain, feeds, seeds and chemicals
- Application: level indicators (tanks / silos); choke switches (chutes, conveyors, elevator legs)
- Detects presence or absence of liquids & free-flowing bulk granular materials
- Easy installation & self-containing
- Belt Conveyor, Bucket Elevator, Chain Conveyor, Screw Conveyor, Silos & Storage
Specification: Value
- Supply Voltage: 24 to 240 VAC/VDC
- Supply Fusing: Supply to be fused at 500mA maximum
- Switching Capacity: BSE12V10AI: 100 mA maximum; BSE15V10AI: 60VDC/VAC, 3A
- Saturation Voltage: BSE12V10AI: 5.2 Volts maximum (output on); BSE15V10AI: N/A
- Leakage Current: BSE12V10AI: <1.0 mA maximum (output off); BSE15V10AI: N/A
- Ambient Temperature: 5°F (-15°C) to +122°F (+50°C)
- Output State: M3003V10AI: FET; M3007V10AI: SPCO relay
- Sensing Range: 1” (25 mm) maximum
- Enclosure: Nylon - ISO threaded 30 mm by 1.5 mm pitch
- Relative Humidity: 90% RH
- LED Indicators: Blue - normally energised
- Connections: 2 wire (BSE12V10AI) or 5 wire (BSE15V10AI), 3m long cable.
- Protection: IP66
