SGM-Lektra S.r.l.

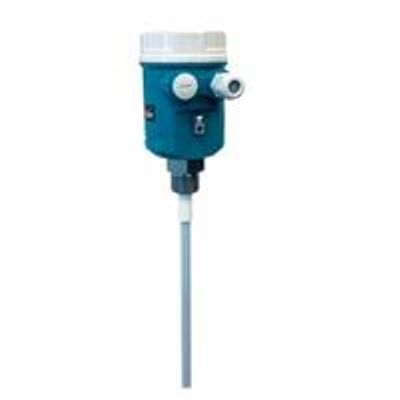

SGM - Model CLT4 -Capacitive Level Transmitter
Capacitive instrument, rod probe suitable for general or chemical-pharmaceutical applications for level measurement of conductive, nonconductive liquids or granules. Installation on the top of metal tanks.
Most popular related searches
capacitance level transmitter
level monitoring
level controller
PTFE rod
level transmitter
capacitance probe
granulator
conductivity monitoring
- Contact level measurement.
- Threaded, flanged and sanitary connections.
- Suitable for measuring of liquids and powders.
- IP65 ÷ 67 protection.
- PTFE or PVC insulation.
- Housing materials Alluminium, Polycarbonate
- Versions Compact, high temperature,
- remote IP rating IP67
- Electrical connection Terminals
- Working temperature -20°C ÷ +70°C PVC, -30°C ÷ +150°C PTFE
- Electrodes rigid insulated PTFE rod, rigid PVC insulated rod
- Power supply 24 Vdc, 24/115/230 Vac
- Analog output 4 ÷ 20mA
- Measure range max 3 mt rod
