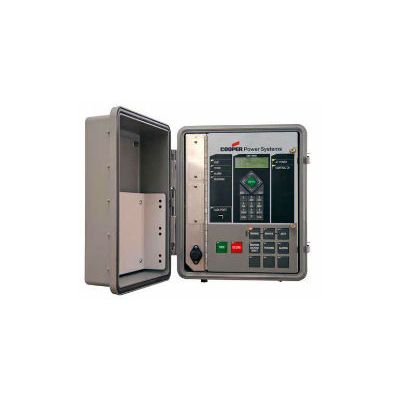

Model CBC-8000 -Capacitor Bank Control
The CBC-8000 Capacitor Bank Control (CBC) is specifically designed to operate utility distribution feeder capacitors. This highly flexible control can be deployed using site metrology, which include Voltage, VARs, Current, Temperature, and Time control configurations. Each control is a low cost, remote controlled unit which can be readily deployed in advance automation schemes such as Cooper Power Systems Yukon™ Integrated Volt/VAR Control Application, SCADA or Distribution Management System. Each control also includes a robust offering of communication loss “or failsafe” back up modes in the event that communications become unavailable, the control can utilize the site metrology to maintain grid stability.
Key Operating Features
- Local or Remote control logic
- Trip and Close Switched Capacitors
- Programmable time delays for trip, close, and reclose operation
- Three Phase Metering for real-time data analysis\
- Communication loss fail-safe modes for added safety
Key Two-Way Communication features
- Network connectivity by Ethernet or Serial connection
- Support simultaneous multiple master station connections
- Configurable DNP point mapping to efficiently manage network traffic by reducing communications bandwidth and data usage
- Remote programming, downloading of data logs and Firmware updates
- Unsolicited reporting of state change, field alarms, or threshold violations for easy monitoring
- Neutral Current Sensing to report imbalance or blown fuses
Enclosure : NEMA 4X (IP65)
Operating Temperature Range : -40°F to 185°F (-40 °C to 85 °C)
Operating Relative Humidity : 5% to 95% non-condensing
Control Weight : 12 lbs (5.44kg)
Application Software : ProView NXG
