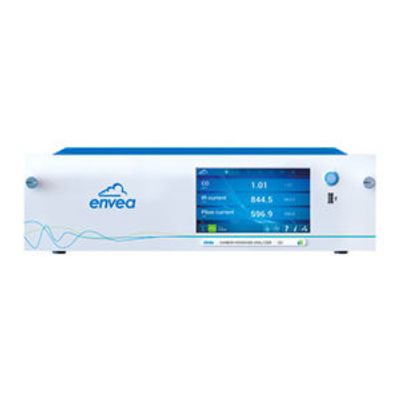

Envea - Model CO12e Dilution -Carbon Oxides Analyzer
FromENVEA
Non Dispersive Infra Red Carbon Monoxide Analyzer for CO measurements in the range 0-50ppm. CO2 monitoring as option. The CO12e analyzer is an Eco-designed, reference air quality monitor, QAL1 certified by the TÜV, US-EPA approved and compliant with ISO 4224. It offers superior metrological performances for CO measurements in the range 0-300 ppm. CO2 monitoring as an option (range: 0-2000 ppm by NDIR)
More about this product— External link
Most popular related searches
infrared carbon monoxide analyzer
industrial fence line monitoring
air quality monitoring
NDIR hydrocarbons
ambient air quality monitoring
fence line monitoring
CO2 monitoring
2008/50/EC
continuous emissions monitoring system
carbon monoxide analyzer
- Cost-saving analyzer with ultra low power consumption, 24 V supply (option) and able to withstand temperatures up to 45-50 °C without air conditioning
- Excellent sensitivity & signal stability, great accuracy and repeatability
- Real-time calibration graph, animated synoptic, auto-diagnostic, control and maintenance data screens can be displayed while the instrument is operating
- Service assistance inside: detects early signs of trouble, allows predictive maintenance, identifies the needed service and guides service operations step by step: increased productivity on site, reduced downtime, more efficiency, less training…
- Includes Communication Protocol for XR® Software with automatic recognition and configuration
- Automatic recognition of plugged electronic boards or optional devices: plug & play principle
- Smart, connected instrument with embedded web server for the easiest, full remote control and operation of the analyzer from any PC, tablet or smartphone (configuration, calibration, test, diagnostic parameters…)
- 7’’ TFT colour touch screen
- Wireless module (in standard with the no-screen version)
- Built-in CO2 monitoring module (range: 0-2000 ppm by NDIR)
- RS232 or RS485 Serial interface (via USB port)
- External opto-isolated I/O interface with:
4 independent analog inputs
4 independent analog outputs
4 remote control inputs
6 dry contacts outputs - 24 V (option)
- Continuous indoor and outdoor air quality monitoring
- Stationary and mobile AQMS laboratories
- Industrial fence-line monitoring
- Continuous emissions monitoring (CEM) by dilution
- Background (urban or suburban), Rural, Traffic, Kerbside measurement campaigns and monitoring studies
- Laboratory and field studies on CO effects
- Sampling technology: Dilution
- Sample transfert: non heated polytube
- back flush function: YES
- span injection: YES
- Built-In O2 option: NO
- Serial link communication: Optional
- Other Communication: Ethernet
- Analogue OUTPUTS: Optional
- Analogue INPUTS: Optional
- Dimensions (mm): • Version (19” Rack): 483 x 545 x 133 mm (D x W x H)
- Measurable parameters: CO: 0-300 / 6000, CO2(%): 0-20
COMPLIANCE WITH:
- EN 14626 (2012), EN 15267, 2008/50/EC, 40 CFR PART 53 SUB B & SUB C
- QAL 1 certified by the TÜV to N° 0000050626
- U.S. EPA approved as compliant with RFCA-0915-228
