Vwalve - Cartridge Filter

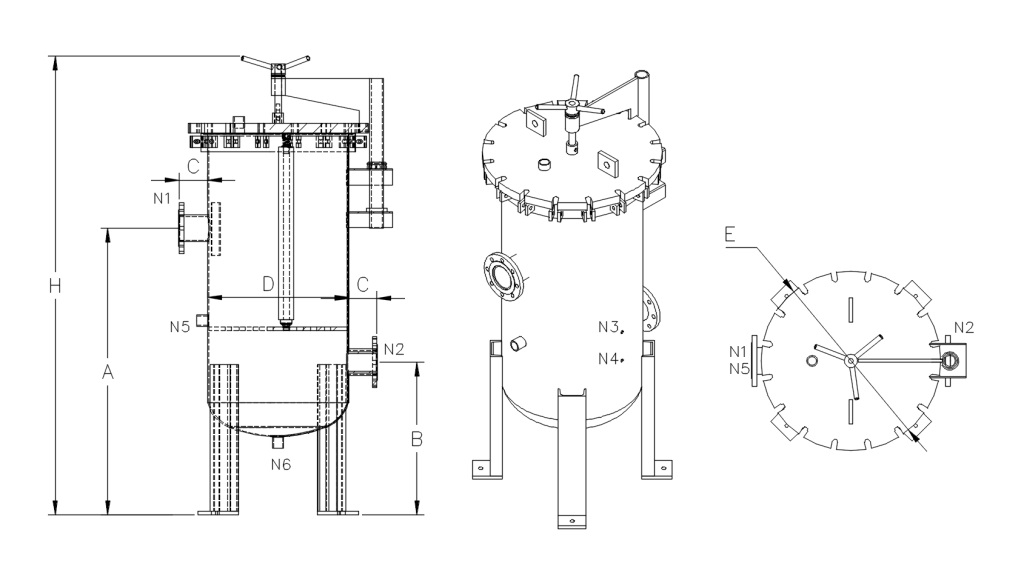

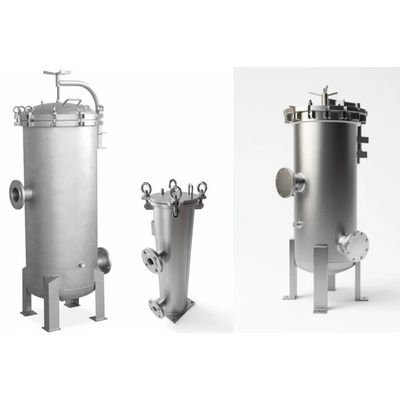

A cartridge filter is a type of precision filter composed of a shell and filter cartridges. It can be equipped with a single cartridge or multiple cartridges, the quantity of which is determined by the filtration flow rate. The shell consists of an upper head, a cylinder body and a cartridge base, featuring easy cleaning with no sanitary dead corners. 3D model online review.
Most popular related searches
cartridge filter
filter cartridge
filter element
polypropylene melt-blown
melt-blown filter
filter housing
polypropylene filter element
filter cartridge housing
polypropylene filter
media filtration
During operation, different filter cartridges are selected according to various filtration media and design processes to meet the requirements of liquid output effect. Driven by pressure, the stock solution passes through the filter cartridges, the filter residue is retained on the cartridge wall, and the filtrate flows out through the cartridges, thus achieving the purpose of filtration.
- Large processing capacity, small volume and high dirt-holding capacity.
- Wide application range, flexible use and diverse installation methods.
- Convenient and quick cartridge replacement, easy cleaning with no sanitary dead corners.
- The filtration precision ranges from 0.5 to 100 micrometers and can be adjusted freely.
- Excellent sealing performance, strong pressure-bearing capacity and low leakage probability, which effectively ensures the filtration quality.

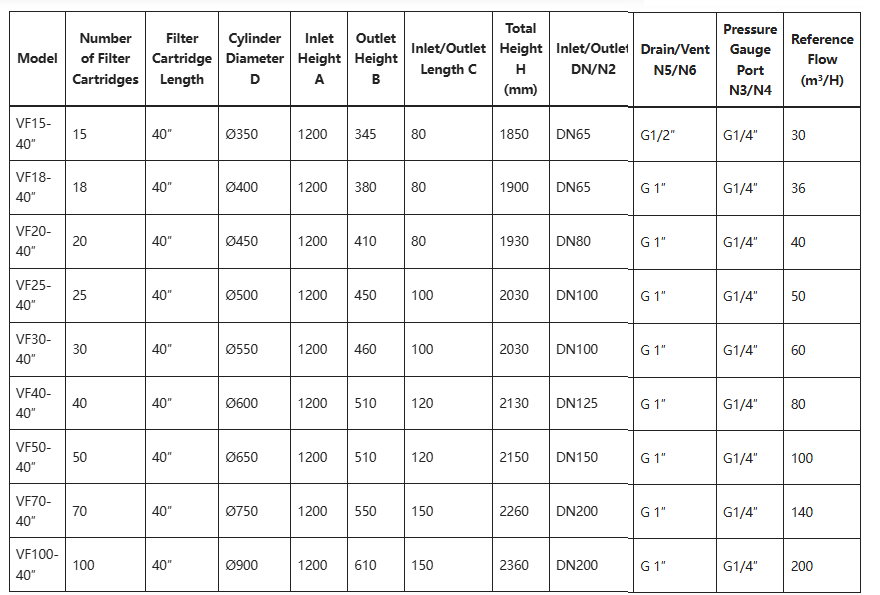

The data in the above table is based on the PP melt-blown filter element. Due to continuous improvements in technical parameters, we regret that timely notification cannot be guaranteed for any changes. The data at the time of actual order shall prevail. Application case studies.
Specification: Parameter Range
- Filtration Precision (μm): 0.1–200 μm
- Design Pressure: 0.6–1.6 MPa
- Maximum Design Temperature: 0–100? (depending on the material of seals and filter elements)
- Applicable Filter Elements: Flat-end, threaded, 222 & 226 bayonet filter elements, and threaded filter elements
- Maximum Pressure Difference: 2.4 bar
- Differential Pressure for Replacement: 1.0 bar
- Filter Housing Material: 304 stainless steel, 316L stainless steel, carbon steel
- Seal Ring Material: NBR (Nitrile Butadiene Rubber, standard configuration), Silicone, FKM (Fluoroelastomer)
- Surface Treatment: Sandblasting, Polishing
