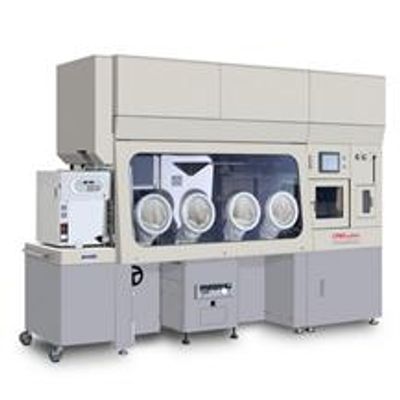

PHC - Model MHE-PF4025CW2-PA -Cell Processing Workstation
The Cell Processing Work Station is a self-contained system that delivers an efficient and cost-effective cGMP compliant processing and manufacturing solution for regenerative stem cell and cell therapies. Offering a highly efficient modular component design and featuring programmable H2O2 decontamination, the workstation delivers a class 100 environment for enhanced aseptic processing while providing a user friendly operating environment. The CPWS also saves approximately 35% in operating costs when compared to a conventional cleanroom.
The PHCbi Cell Processing Work Station (CPWS) offers significantly lower operating costs when compared to a conventional cleanroom (open system). Comparison methodology and assumptions are available from PHC Corporation of North America. Soft-cost benefits related to user convenience, user comfort, flexibility, throughput and other demonstrated advantages of the CPWS can be established through consultative review.
Energy Efficient, Green DesignThis GMP cell processing equipment is designed to minimize its carbon footprint through energy savings and environmental stewardship.
Self-ContainedThe PHCbi concept of a self-contained work station is enable by the company`s demonstrated proficiency for in situ decontamination. This is necessary to separate the processes from one patient to the next or one protocol to another. By using a highly effective hydrogen peroxide decontamination process, the cell processing work station can be completely decontaminated without heat and prepared for the next protocol within two hours.
Space SavingThe small footprint of the CPWS increases options for location and orientation.
Easy to InstallThe cGMP compliant cell therapy equipment can be installed in manageable Grade D (Class 100,000) environment, providing biological and physical protection between the work and the user.
GMP Compliant for Aseptic ProcessesBy increasing throughput within the compliant parameters of GMP criteria, the CPWS is deployed for research, cellular manipulation, cell growth, cell product extraction and emerging processes that fall within similar guidelines.
User FriendlyWork is easily suspended and resumed without the need to de-gown and re-gown, improving user comfort.
- BARRIER ISOLATOR Positive Pressure Standard
- INTERCHANGE PASS BOX Manually Initiated H2O2 Decontamination
- CENTRIFUGE Optional. Integrated into work surface.
- AIRFLOW Class 100 Vertical down flow to work surface at 0.2 to 0.3 m/s
- CO2 INCUBATOR Optional with docking collar.
- H2O2 SYSTEM Manually initiated and automatic sequence for all interior components and accessories.
- CELL OBSERVATION SYSTEM Optional with microscope and monitor.
