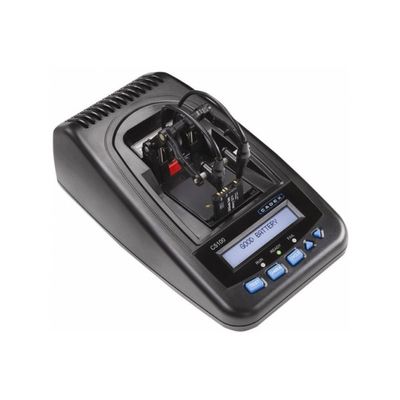

Cadex - Model C5100B -Cellphone Battery Analyzer
Cellphone users are asking for better in-store services, driven largely by lack of visibility into the health of their batteries. With current and potential new customers feeling helpless that their batteries don’t hold as much charge as they used to, they are turning to the internet and finding information that doesn’t solve their individual battery problems. The C5100B removes the guesswork of low runtimes in cell phones, and turns you and your staff into battery experts. Testing the battery gives the user a clear assessment of battery performance in 4 minutes.
The Cadex C5100B cellphone battery analyzer improves customer care, increases revenue by creating a captive audience in your store during the 4-minute test, and reduce your environmental footprint by decreasing the number of batteries prematurely discarded.
INCREASE REVENUE AND CUSTOMER SATISFACTION
Mobile phone users have been asking for better storefront services and battery testing fills this need in part. On a customer’s complaint saying, “my phone does not hold charge,” the C5100B may give a battery a clean bill of health, prompting to look for other anomalies, such as high current drain. Some customers may need to adjust to realistic runtimes expectations when running power-robbing apps; battery swapping won’t help.
WHAT`S NEW WITH THE CADEX C5100B?
As part of continued improvements, Cadex engineers have achieved remarkable advancements in battery rapid-test technology. The C5100B can now test mobile phone batteries up to 4,000mAh with a common parameter. This eliminates the selection of battery-specific Q-codes.
- Test range of QuickSort 4 (QS4) increased to 4,000mAh. Tests single-cell Li-ion.
- Generic parameter tests all batteries; automatically chooses best algorithm.
- Capacities and voltages can be entered directly without scrolling through C-codes.
- Pass/fail selection from 60–90%. Default setting is 80%.
- Tests battery in 4 minutes with state-of-charge of 20% and above.
- Other programs include CHARGE, CYCLE and BOOST.
- Compatible with QS1 and QS3 sorting algorithms.
- Application : Single-station lithium-ion battery tester
- Range : 3.6V and 7.2V nominal, 2A, 8W charge and discharge. Polarity protected.
- Analyzer automatically choses a lower C-rate when exceeding 2A.
- Battery Adapter : Includes one adapter of your choice (e.g. RigidArm, FlexArm, or SmartConnect). Also takes SnapLock™ adapters; auto-scales when exceeding wattage/current setting. Read-only function; programmable with PC-BatteryStore™; temperature sensor. (The limited power of the C5100 may prolong service.)
- QuickSort™ : QS1 (600–1,500mAh), QS3 (use of Q-codes) and QS4 (generic, user-entry of voltage and mAh). QS4 services 3.6V Li-ion up to 4,000mAh with a state-of-charge of 20% and above.
- Line Voltages : 100-240VAC, 50/60Hz
- Programs : TEST: 4 minutes QuickSort™
- CHARGE: 3-hour fast charge
- CYCLE: Charge/discharge/charge
- BOOST: Reactivates batteries
- Display : 2x20, backlit; Run, Ready, Fail signal lights
- Data Ports : USB, RS232 for unit upgrades
- Physical : H 92mm (3.6”); W 160mm (6.3”); L 285mm (11.2”); 0.82kg (1.8lb.) net C-ABS housing
- Approvals : CSA/UL/EN60950, CE mark, RoHS, WEEE
- Warranty : Two (2) year material and workmanship
