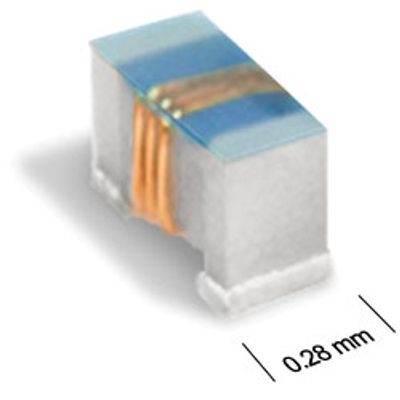

Coilcraft - Model 016008C -Ceramic Chip Inductors
FromCoilcraft, Inc.
The 016008C Series is the world’s smallest high-frequency-wirewound chip inductors. It features the highest Q factor on the market — up to 40% higher than the best thin-film counterparts. High Q is required to minimize the insertion loss in RF antenna impedance matching circuits, which makes the 016008C ideal for high-frequency applications such as cell phones, wearable devices, and LTE or 5G IoT networks.
Most popular related searches
- World’s smallest high-frequency-wirewound chip inductor
- First metric 0402 (0.4 x 0.2 mm), performance-optimized 01005 size
- Extremely high Q, the highest in the market – higher than all thin film type
- Exceptionally low DCR – lower than all thin film type
- 36 inductance values from 0.45 nH to 24 nH
Core Material:
Ceramic
Weight:
0.10 – 0.16 mg
Packaging:
2000 per 7″ reel; Paper tape: 8 mm wide, 0.42 mm thick, 2 mm pocket spacing, 0,38 mm pocket depth
Temperature coefficient of inductance:
+25 to +150 ppm/°C
Moisture Sensitivity Level (MSL):
1 (unlimited floor life at <30°C / 85% relative humidity)
Resistance to soldering heat:
Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles
Refer to Soldering Coilcraft Components before soldering.
PCB Washing:
PCB washing Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info
