Kerafol - Model 374, 312, 152 -Ceramic Filter Discs
Kerafol provide you with the necessary parameters for installing the discs in your filtration plants (sealing, fixing, process parameters).
Most popular related searches
ceramic filter disc
ceramic filter
ceramic disk filter
disc filter
steam sterilizer
steam sterilization
process safety
disc filtration

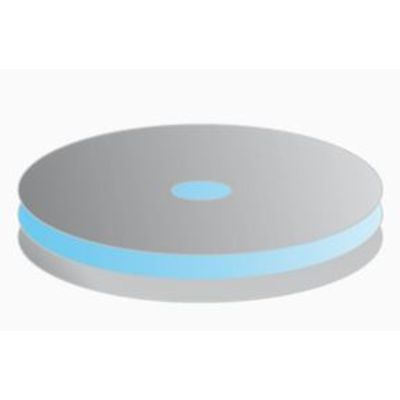

Ceramic Filter Discs provides maximum process safety
- Resistance to chemical and thermal stresses
- Regeneration by backflushing or hot steam sterilization
- High filtration flux and very long service life
- Diameter Øo 374 mm
- Diameter Øi 91 mm
- Thickness d = 5.85 mm
- Membrane surface 0.20 m²
- Diameter Øo 312 mm
- Diameter Øi 91 mm
- Thickness d = 5.85 mm
- Membrane surface 0.14 m²
- Diameter Øo 152 mm
- Diameter Øi 25,5 mm
- Thickness d = 4.5 mm
- Membrane surface 360 cm²
