Pingxiang Hualian - Ceramic Structured Filler

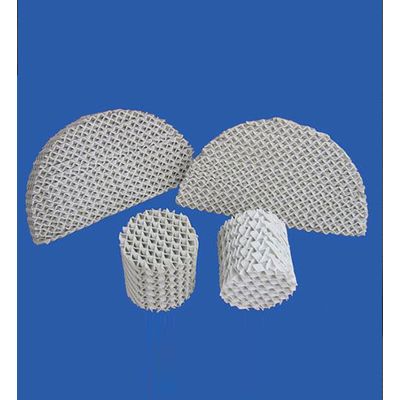

The ceramic structured packings are also called kelapak. It is composed of many packing units with the same geometric shapes. Each packing unit consists of parallel superposed corrugated sheets. Ceramic structured packing has high efficiency, low pressure drop, high capacity, scale effect is not obvious, high operating elasticity, corrosion resistance, heat resistance etc. It can widely used in the coal gas scrubbing tower?coking scrubbing benzene tower?scrubbing NH3 tower?fertilizer saturation-heat water column and scrubbing sulpher tower etc.

Type Specific surface area (m2/m3) Void volume (m3/m3) Hydraulic Diameter (mm) Liquid Load (m3/m2.h) The biggest F factor (m/s(kg/m3)0.5) Pressure Drop(mmHg/m) Theoretical Plate(1/m) Heaping Density (kg/m3) Obliquity Wave crest hight(mn)

100X	100	92	30	0.2-100	3.5	1.5	1	280	30°	30
125Y	125	90	28	0.2-100	3.0	1.5	1.8	320	45°	23
125X	125	90	28	0.2-100	3.2	1.8	1.5	300	30°	23
150Y	150	85	15	0.2-100	2.8	1.8	2	370	45°	17
150X	150	85	15	0.2-100	3.0	2	1.8	350	30°	17
250Y	250	80	12	0.2-100	2.6	2	2.5	420	45°	13
250X	250	80	12	0.2-100	2.8	2.5	2.3	400	30°	13
350Y	350	78	10	0.2-100	2.5	2.5	2.8	470	45°	9
350X	350	78	10	0.2-100	2.6	3	2.5	450	30°	9
400Y	400	75	8	0.2-100	2.0	3	3	500	45°	7.5
400X	400	75	8	0.2-100	2.2	4	2.8	480	30°	7.5
450Y	450	72	7	0.2-100	1.8	4	4	520	45°	6
450X	450	72	7	0.2-100	2.0	4.5	3-4	500	30°	6
470X	470	75	7	0.2-100	1.8	5	5	540	30°	7
550X	550	74	6	0.18-100	1.3	5.5	6	620	30°	10
700X	700	72	5	0.15-100	1.4	6	5	650	30°	8

Heat resistance(?) Water absorption(%) Acid resistance(%) Alkali resistance(%) Crush Strength (Mpa) Hardness (Mohs)

1400	≤0.5	≥99.8	≥92	≥130	≥7
