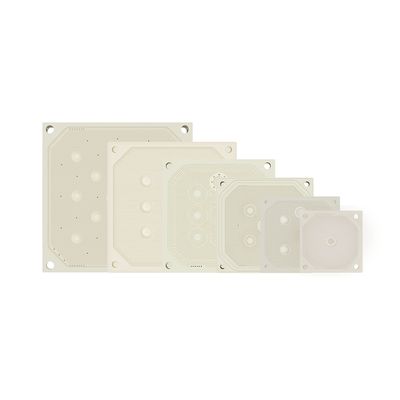

Longone - Chamber Filter Plates

The chamber plate frame is integrated within the chamber filter plate thus significantly enhancing the plate’s stability. This enables chamber filter plates to be used at much higher filtration pressure levels. Optional cake and plate thicknesses are available depending on the specific filtration conditions and application. And because of their excellent chemical resistance and easy handling, chamber plates are widely used in a large number of applications.


Advantages of Chamber Filter Plates:

• The recessed area of the chamber filter plate is molded with conical pips. The surface of the pips provides support for the filter cloths and provides a drain path for the filtrate to exit to the filtrate discharge port.
• The chamber filter plate can be supplied with customer requested feed eye arrangement.
• *The sealing surface of the chamber filter plates are machined parallel to seal when the plates are pressurized.
• A long working life is achieved due to most modern production techniques as well as to an excellent chemical resistance of the used thermoplastic materials even under high temperature.
• A quick drainage and an excellent washing of the cake result in a high product quality. The hydrophobic surface prevents resp. delays plugging of drainage channels.
• The special design of chamber plates leads to shorter filtration cycles and an increase in capacity.
• The smooth plastic surface reduces friction between filter cloth and plate surface.
• Compared to filter plates made from metal there is almost no loss in energy even under high working temperature.
• The inert hydrophobic surface of PP rejects dirt, absorbs less than 0,1% water and makes a quick product conversion possible.
• The low weight makes handling easy and shortens filtration cycles.

Packaging Details: customer request

Port: Shanghai, Ningbo

Lead Time:35 days

• CE Qualification
• ISO9001:2015 Quality Management System Certificate
• ISO14001:2015 Environmental Management System Certificate
• ISO45001:2018 Occupational Health and Safety Management System Certificate
• Invention Paten
