LNS - Model Turbo MH Series -Chip Conveyors

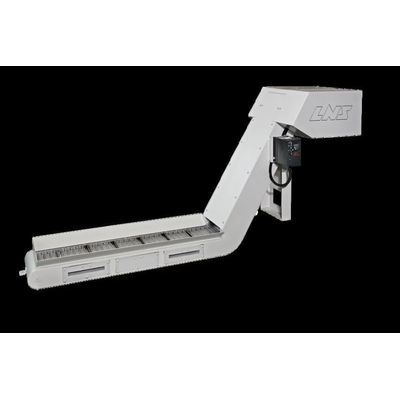

Turbo MH Series Chip Conveyors – self-cleaning filtration down to 140 or 500 microns. Turbo MH Series chip conveyors combine the chip-carrying capability of a hinge belt chip conveyor with coolant filtration to 140 or 500 microns. Therefore, the MH Series chip conveyors are ideal for CNC machines capable of multiple operations and those that produce large, stringy, or small chips. Further, this chip conveyor typically fits in the standard machine tank.
Filtration boxes
The Turbo MH chip conveyor incorporates filter boxes inside the conveyor frame. For this purpose, continuous self-cleaning filtration occurs for all coolant cycling through the machine`s coolant system to 140 or 250 microns.
Therefore, filtration extends the coolant and tool life. In addition, this drastically reduces the required tank or machine cleanouts, especially where small chips are produced. The number of boxes used matches the machine tool`s maximum coolant flow rate.
Self-cleaning function
To ensure the self-cleaning function of the conveyor, the Turbo MH Series chip conveyors use brushes mounted to the inside of the conveyor belt. For this purpose, these brushes automatically clean the filters during the normal rotation of the conveyor belt.
In addition, the brushes are inside the conveyor belt and are protected away from the chips that fall on the belt during the machining process. To this end, this ensures long life and minimal maintenance. While brushes may become worn or damaged over time, they can be quickly changed with easy access through the chip conveyor discharge. The brushes are inexpensive and ensure maximum up-time.
Live Link
The Turbo MH Series chip conveyors incorporate a unique feature called "Live Link." The Live Link is incorporated into the conveyor belt.
In brief, fine chips pass through the chip conveyor belt to be released to the base of the conveyor and are removed by the scraper cleats. The Live Link allows fine chips to leave the cutting area between each belt flight, so chips cannot accumulate over time.
Chip Type: Mixed
Filtration (µ): 140 / 500
Side Wing Height: Standard Duty (NGB) 0.75" / Super Heavy Duty 1"
Tail Height: Standard Duty (NGB) 4.72" / Super Heavy Duty 6.89"
Minimum Frame Width: Standard Duty (NGB) 10.5" / Super Heavy Duty 12.2"
Maximum Frame Width: Standard Duty (NGB) 26.54" / Super Heavy Duty 40.2"
Width Increments: Standard Duty (NGB) 2" / Super Heavy Duty 2"
Motor Power and Ratio: Standard Duty (NGB) (1/4 HP – 240:1) / Super Heavy Duty (1/4 HP – 300:1)
Machine Tool Spindle Power: Standard Duty (NGB) (0 – 35 HP) / Super Heavy Duty (>35 HP)
Motor Power and Ratio: 0.18 kW - 240:1 / 0.18kW – 300:1
Machine Tool Spindle Power: 0 - 22 kW (0 - 30 HP)
