Chopper Pumps
FromPumpTech Inc.

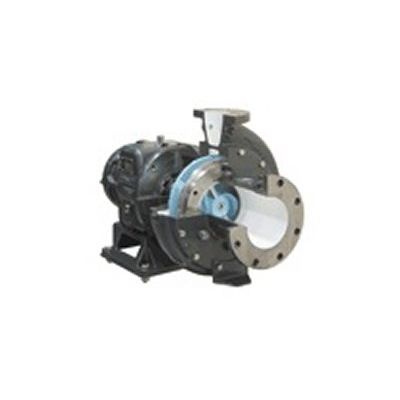

Cornell’s Chopper Pump is ideally suited for chopping Solids. The standard casing, made of ASTM A536 grade 65-45-12 ductile iron, stands up to robust applications. Everything about the pump is built to tackle hard jobs, from the replaceable cutter bar made of T1 tool steel heat treated to a minimum of 60 Rockwell C hardness, to the heat treated cast steel impeller. The Cornell Chopper pump series is a heavy-duty performer.
Most popular related searches
chopper pump
tungsten carbide
ASTM A536
clarifier scum
lift station
septage receiving
angular contact ball bearing
stainless steel flange
septage receiving station
cutter pump
- Cutter Bar: T1 tool steel heat treated to minimum 60 Rockwell C hardness
- Casing: All Ductile Iron
- Impeller: open, cast steel AISI 8630
- Shaft: AISI 4142 heat treated to minimum 60 Rockwell C hardness
- Thrust Bearings: Back-to-back angular contact ball type
- Radial Bearings: Single ball type
- Mechanical Seal: John Crane single, Type 2 Tungsten Carbide vs. Silicon Carbide
- Shaft Sleeve: stainless steel, AISI 416
- Flanges: 125 lbs.
- Eliminates the vast majority of clogging problems
- Chops Solids up to 2 inches
- Heavy duty construction
- A variety of mounting configurations
- Efficiency to 65%
- TDH to 250 feet
- Operating speeds to 1800 RPM
- Lift stations
- Septage receiving
- Sludge transfer and recirculation
- Digester scum blankets
- Clarifier scum
