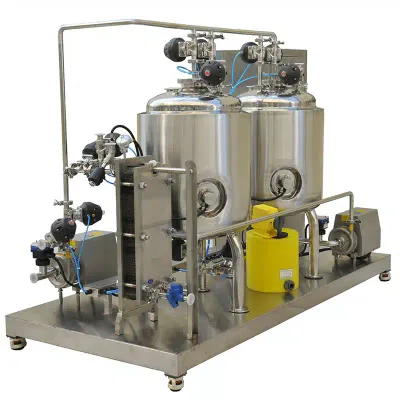

RITAI - CIP Cleaning Machine
The CIP (Clean-In-Place) cleaning machine is pivotal for sectors like pharmaceuticals, food and beverage, and biotechnology. It's a highly automated system built to clean and sterilize the interior surfaces of equipment used in these industries without disassembling them. This capability drastically cuts down on downtime, reduces labor expenses, and lessens contamination risks. In the pharmaceutical industry specifically, CIP systems are critical in ensuring equipment cleanliness and sterility, meeting stringent GMP and regulatory standards. These systems manage to sanitize various components, such as tanks and pipes, thereby upholding drug production quality. Pricing of these CIP systems depends on the system’s size, complexity, and the degree of automation, with basic setups costing a few thousand dollars, and complex installations running into hundreds of thousands. Fully validated, the CIP systems use agents compatible with pharmaceutical materials, proving fundamental for safety and regulatory compliance in pharmaceutical manufacturing.
We specialize in supplying customers with a wide range of cell culture fermentation, and cell fermenter, and also offer services including design, installation, and commissioning.
The following images display the Growth and E-Pharma brands, which are brands under RITAI.
Shanghai Ritai Medicine Equipment Project Co., Ltd. is a leading manufacturer with a strong expertise in pressure vessels, as well as powerful research capabilities. We specialize in supplying customers with a wide range of cell culture fermentor, and also offer services including design, installation, and commissioning.
Cell Culture fermentor:
Lab scale: 5L-10L-15L
Pilot scale: 20L-400L
Industrial scale: 500L-30000L
Key Features of our Cell fermentor:
Our systems are equipped with advanced control systems that can accurately monitor and adjust the cell culture fermentation process, ensuring high product quality and stability.
The equipment is designed to be easily cleaned and maintained, meeting the rigorous standards of GMP compliance.
We offer a variety of sizes and configurations of cell fermentor to accommodate different production needs across various scales and process conditions.
Type :
fermentor
10l fermentor
small fermentor
Material :
Wetted parts are SS316L, and others are SS304.
Production Capacity :
5L-300L
Control Points :
PH, DO, RPM, TEMP, FOAM,FEED, ETC
Documents :
DQ, IQ, OQ, PQ, FAT, SAT, Operation Manual, Drawing, etc.
Applicable Industries :
Biology, Biopharmaceutical, biotechnology Research, Bioengineering, Life Sciences, Cell and gene therapies
Application :
Antibodies, Vaccine, Bacteria, Enzyme, Fungi, Blood, Microbiology, etc
Voltage :
110V, 220V, 240V, 380V, 400V
Certification :
ASME, PED 97/23/EC, NB, GB, ISO 9001:2008
Stainless steel part finish :
inside surface is 0.28-0.6μm by mechanical polishing, ( passivation or electropolish are optional)
outside surface is 0.4-0.8μm by satin finish.
Operating panel :
English or Customized
Pressure :
Working pressure inside vessel:0.2mpa
Design pressure inside vessel: 0.25mpa
Working pressure inside jacket:0.3mpa
Design pressure inside jacket: 0.35mpa
Pressure can be also designed according to client’s detail requirement.
Agitation :
1.Fermentor use top servo motor or SEW decelerator, or bottom ABB motor
2.top mechanical agitator or bottom magnetic agitator l
3.speed range:50-400rpm
4.Fixed-Fluidized bed type agitator
Equips of vessel :
1. using alcohol flame inoculation
2. electrical heater
3. PH,DO, temp. sensor foam and level probe port, etc.
Construction :
Floor-top
One fermenter vessel with one control system (siemens PLC and HMI)
