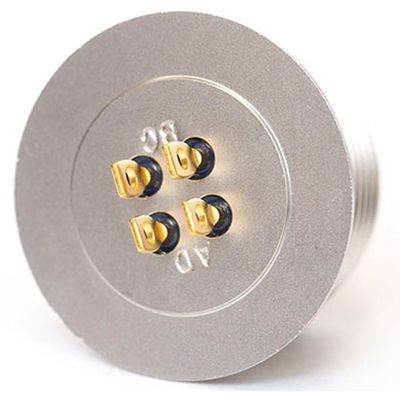

PHT - Circular Connectors
Our housings are fabricated using a one-piece shell construction for ultimate strength and performance. Polarizing keys, bayonets and other hardware are machined in, providing a more robust product with long-term reliability. We offer matched and compression sealing for standard as well as custom products.
Most popular related searches
- Materials (Shells):
Stainless Steel, Titanium, KovarModify, Monel, Aluminum, Inconel 600 & X-750. RoHS compliant materials and certification available. - Materials (Contacts):
Iron Nickel Alloy, 52 Alloy, Kovar, Brass, Beryllium Copper and Phosphorus Bronze as well as other types of Copper Alloy materials. RoHS compliant materials and certification available. - Plating:
NADCAP certified plating is available with nickel, tin, tin-lead, silver, cadmium or gold finish and stainless steel passivation. - Hardware Mounting Configurations:
Bulkhead mount, box mount, jam nut mount or flange and weld mount for laser welding. Post machining capability for titanium and kovar welding requirements. - Terminations:
Flatten and pierce or eyelet, flying lead, solder tail, solder cup, solder pot, and all are available with solder dip coating. - Contacts:
All contact styles and sizes are available and will meet Mil-Std-1344 requirements. - Testing:
Leak Rate (1x 10-9 cc/sec helium at 1 atmosphere differential) and pressure testing up to 40,000 PSI, electrical continuity, dielectric withstanding voltage (DWV) per Mil-Std 1344 and insulation resistance (IR) validation at temperature per Mil-Std 202. - Tolerances:
Less than .001” are achievable on finished assemblies, please consult the factory for details.
