Munk Schmitz

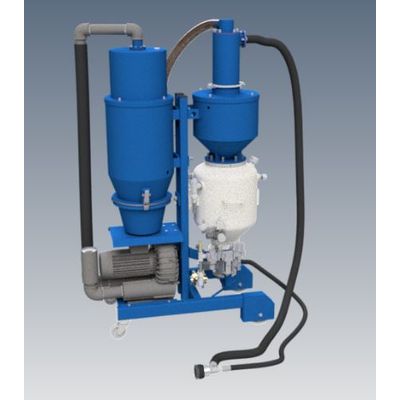

Problast - Model 40 DV -Closed-Circuit Blast Machine
FromMunk Schmitz
Machine type: Mobile pressure-fed air blasting machine with blast gun (closed-circuit blasting machine). Application
Rust removal, descaling, paint stripping, weld andmould cleaning, roughening and etching of rollers.
Most popular related searches
blasting machine
dust bin
blasting system
dust collector
blasting nozzle
abrasive blasting
dust separator
dust cleaning
dust separation
vacuum pump
- Blast gun for simultaneous blasting and recovery of blast media and dust
- Pressure vessel / Storage hopper for reclaimed blast media
- Reclaimer (air cyclone) for separation of re-usable blast media from the recovery air flow
- Dust collector with dust bin for dust cleaning of recovery air flow
- Vacuum generator for generation of recovery air flow
- Maintenance unit for control of blasting pressure
Blasting method: pressure-fed
Vacuum generation: vacuum pump
Blast cycle duration (max.): 20 – 25 min
Air consumption (at 6.3 bar): 1.4 m³/min
Energy consumption: 3 kW
Coating: RAL 5015
Dimensions (L/W/H): 1,100/600/1,850 mm
Empty weight: 280 kg
Hose length: 6 m
Blast gun: Ø 61 mm
Blast nozzle (boron carbide): Ø 4.8 mm
Effective blast track width: 18 – 20 mm
Blast media grit size recommended:
- metallic 0.2 – 1.1 mm
- non-metallic 0.1 – 1.1 mm
Blast media throughput at 6 bar:
- metallic 4 kg/min
- non-metallic 2 kg/min
Blast media storage capacity with 30 l vessel:
- metallic 100 kg
- non-metallic 50 kg
Filter area: 5.5 m²
Dust separation efficiency: > 99.9 %
