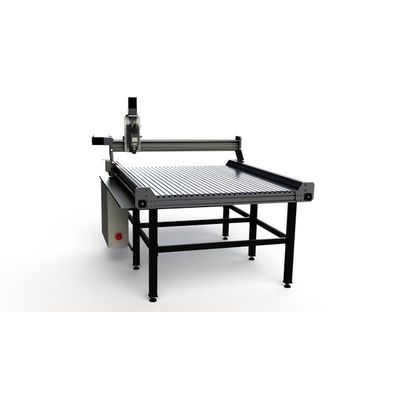

XPATH - Model XP-Line -CNC Machine
It is designed when you use it as a table cutter, there is no need for additional leveling feet, which causes additional vibrations. Simply fix the machine to the surface as much as possible, allowing it to operate without unnecessary vibrations.
Closed-loop motors technology merges the benefits of stepper and servo motor technology. They run more smoothly and have a lower resonance than stepper motors, provide position feedback and control, feature short settling times, and exhibit no step loss at all. They are running quiet, and a high load tolerance is required. Compared to servo motors, they have advantages due to their high torque at low speeds, short settling times, and correct positioning without a back leash.
Ball screw spindles are positioned so that they are hidden from direct dirt, dust, and chips. In addition, they are fixed with one fixed and one floating bearing FF/FK series. We use pitch 10mm for X, Y, and pitch 5mm for Z-axis.
Z-Axis slider is made from a 15mm thick aluminum plate and designed to be combined with 15mm linear guides and ball-screw 16x5mm. It is strong and extremely rigid. From the left and right sides are prepared holes in case you want to use Dust-shoe socket and a few additional holes for mounting the laser head or coolant lubrication system.
Base legs are made from 60x60mm iron steel tube with predrilled holes for assembly on the base frame and connecting profiles are made of 50x30mm tube. Adjustable leveling feet has 80mm feet diameter. If you order a leg kit you will get approx 900mm top high of your working table. Finish is black RAL 9005.
Aluminium table is a great choice because you will get more weight on the base frame and more rigid and stable construction. You will also get a more functional clamping area for the workpiece. Assemble it from 180x20x3,6mm aluminium profiles. The slots for clamping are 10mm.
For the spindle, you can select G-Penny 2.2kW ER20 220V , Spinogy X22 2.2kW ER25 220V or Hiteco 3kW S-13/18 24 ER25 380V air-cooled square spindle. All of spindle is a great all-rounder spindle with a large specter of use. G-Penny came with HY VFD, Spinogy and Hiteco came with Hitachi S-1 and all was pre-programmed for immediate use.
The electrical cabinet has an outer dimension of 600x600x200mm(H x W x D) and you can mount it on predrilled holes on the base frame leg or on the wall. On each cable, you will see a GX connector with different pins and a mark where it belongs so you can`t do anything wrong.
What is included in electrical cabinet:
- Industrial steel enclosure
- All shielded cables
- 1pcs 5M ethernet cable for connection with your PC
- AXBB-E motion controller
- 4pcs Nema 34 4.5Nm Closed loop motors with drivers
- UCCNC software program with licence key
- Z probe touch plate*
- Feed Rate&Spinle Speed manual potentiometer switch*
- Spindle Air cooled G-PENNY 2,2kW 220V ER20 and VFD Huanyang*
- Spindle Air cooled SPINOGY X22 2,2kW 220V ER25 and VFD Hitachi S1*
- Spindle Air cooled HITECO S-1 3/18 24 ER25 DX BT 3kW 380V ER25 and VFD Hitachi S1*
- 2pcs 60V 600W Power supply
- 5V 60W Power supply
- 24V 75W Power supply
- Emi filter
- Main switch
- GX connectors for all cables
- 5 x Mechanical limit switches for all axis
- 4 x Inductive sensor reference switches for all axis:
- 1x X-axis
- 1x Z-axis
- 2x Y-axis (Auto Squaring)
*OPTIONAL
Before we ship CNC to a new customer we fully assembly the base frame and all axis together and made a test if everything is on the square and OK. We put our CNC on wooden boxes and primary secure all sensitive parts. Basically, we made almost all job for you! If you order with base leg or electrical cabinet, you will assembly easily because is made very simple. All Our CNC machines are shipped fully assembled with the Eurosender platform via freight. You will need a couple of people to get the CNC out from the pallet to the table you plan to put it on.
- X: 850 mm
- Y: 700 mm
- Z: 248 mm
- Lenght: 1100 mm
- Width: 1290 mm
- Height: 840 mm
- X: 900 mm
- Y: 880 mm
- 199 mm (without MDF ot ALU table)
- 15000 mm/min Nema 34
- +/- 0.01 mm
- +/- 0.02 mm
- +/- 0.001 mm
- 105 kg
- + 33 kg with optional ALU table
- + 40 kg with optional Electronic cabinet
- Fully assembly CNC machine
- Heavy duty and rigid construction
- Fast and precize Ball-screw motion on all axis
- 2 x linear rails 20mm for X-Axis with 4pcs linear blocks
- 1 x linear rail 20mm on each side for Y-Axis with 2pcs linear block
- 2 x linear rail 15mm on Z-axis with 4pcs linear blocks
- 2 x Ball-screw motion 25x10mm on Y axis
- 1 x Ball-screw motion 20x10mm on X axis
- 1 x Ball-screw motion 16x5mm on Z axis
- Open style cable chain on X and Y axis
- Closed style cable chain on Z axis
- Base frame assembly with 8040 ALU profiles
- Predriled holes on Z-Axis for standard 1.5kW or 2.2kW square Spindel
- Drawing sheet for the MDF wasteboard
- USB key with all documentation and manual
