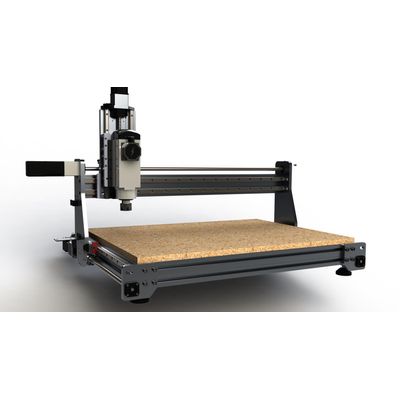

XPATH - Model P-Line - CNC machine

XPATH - Model P-Line -CNC machine

FromXPATH CNC Machines

SHARE

The P-Line series is the younger brother of the XP-Line series. Simple, easy, and user-friendly for simple users who are dealing with wooden or plastic products. It has 20 mm linear guides and accurate ball-screws, which places it at the top of the entry-level class. The machine is fully assembled and comes with a controller and all necessary electrical wiring.

Most popular related searches

Design

The main X-carriage profile is made from massive 60x90mm heavy-duty aluminium extrusion so can handle up to 2.2kW spindle. On the Z plate are already predrilled holes for standard 1.5kW or 2.2kW square spindle. You can also select one of our round router mounts for Makita, Dewalt, or round 80mm spindle.

Hardware options

For the P-Line, you can choose router or spindle mount. All our P-line CNC machines come fully assembled with an MDF working table and with M6 insert for immediately use.

Usage

It is designed for working wooden and plastic projects like flags, sculptures, signs,3D carving, and much more.

Work area(travel)

X: 450 mm
Y: 500 mm
Z: 200 mm

Outer dimensions

Lenght: 880 mm
Width: 825 mm
Height: 800 mm

Clamping area

X: 530 mm
Y: 660 mm

Clearance below X axis

160 mm (without MDF ot ALU table)

Cutting Speed

7000 mm/min Nema 23

Accuracy

+/- 0.1 mm

Repeatability

+/- 0.1 mm

Resolution: X/Y/Z

+/- 0.01 mm

Approx base model weight

62 kg basic weight of machine

Fully assembly CNC machine
Heavy duty and rigid construction
Fast and precize Ball-screw motion on all axis
2 x linear rails 20mm for X-Axis with 4pcs linear blocks
1 x linear rail 20mm on each side for Y-Axis with 2pcs linear block
2 x linear rail 15mm on Z-axis with 4pcs linear blocks
2 x Ball-screw motion 16x10mm on Y axis
1 x Ball-screw motion 16x10mm on X axis
1 x Ball-screw motion 12x4mm on Z axis
Open style cable chain on X and Y axis
Base frame assembly with 8040 ALU profiles
MDF working table with M6 insert
Predriled holes on Z-Axis for standard 1.5kW or 2.2kW square Spindel
