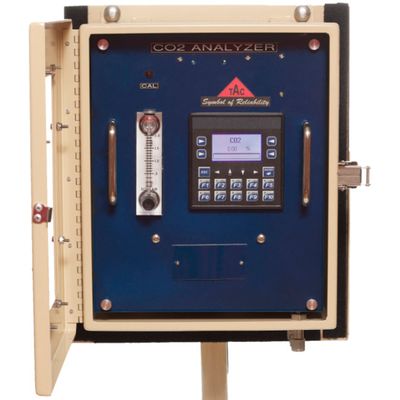

TAC - Model XLE 105-4 -CO2 Process Analyzer
The Model XLE 302/112 CO2 Analyzer is economical, reliable and easy to use. The analyzer uses the proven non-dispersive (NDIR) principle to detect and monitor the presence of CO2. By incorporating two internal active detectors and a reference detector with an infrared source and specific filtering, the carbon dioxide concentrations can be determined. The operator is provided a continuous measurement of the CO2 concentrations. The infrared sensor typically lasts 3 years. The sensor assembly can be easily replaced in the field. Calibration is fast and simple. One bottle of CO2 and one bottle of Nitrogen is required. (See the VIDEOS tab and watch “How to Calibrate CO2 Process Analyzer.)
Full Technical Support
You will find the analyzers are easy to maintain. Technical support is available via phone or in person by one of our service technicians.
Range: PPM and % Levels
Customer to specify a range and can be field programmable to alarm at any desired set point.
Detection Method: NDIR – Non-dispersive Infrared (Estimated life: 3 Years)
Field replaceable
Continuous Measurement
Calibration: Simple Calibration
1 CO2 Standard Bottle & 1 N2 Standard Required
Communications Output: 4-20 mA (Self Powered)
Modbus
(See Customization Tab for other options)
Sample Input Pressure: Inlet 10+/-2 PSIG
Response Time: Continuous
Instrument Accuracy: +/- 5% of Full Scale
Instrument Repeatability: +/- 2%
Current Draw: Less then 1 A
Operating Temperature: -20°C to 50°C; -40°F to 122°F
