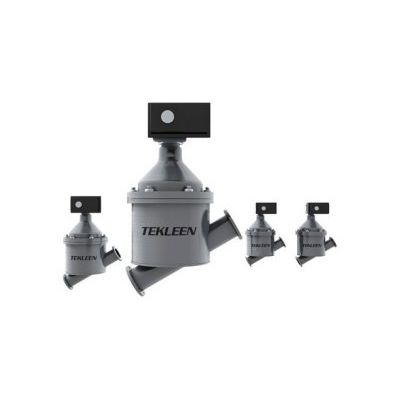

TEKLEEN - Model CSF Series -Coarse Screen Flush Filter
TEKLEEN features the Course Screen Flush (CSF) series of automatic self-cleaning water filters for applications that don`t require fine filtration. Filters are available with wedge wire, perforated SST, or perforated PVC screens. Cleaning is achieved by a blow off that opens by differential pressure, timer, or manually for a very short duration.
Most popular related searches
automatic self-cleaning water filter
self-cleaning water filter
automatic self-cleaning filter
flushing valve
water filter
coarse screen
self-cleaning filter
coarse screening
automatic water filter
filter cleaning
- Line Sizes: 2" - 20"
- Flow Rate: 100 - 10,000 gpm
- Screen Opening: 1/4" - 1/2"
- Material: SST or Carbon Steel
- Pressure: 40 - 150 psi
- Temperature to: 200°F
- Flush Valve Size: 2", 3", 4", 6"
- Flush Flow Rate: 40 - 160 - 600 gpm
- Flush Duration: 5 - 10 seconds
- Flushing Volume: 30 - 100 gallons
