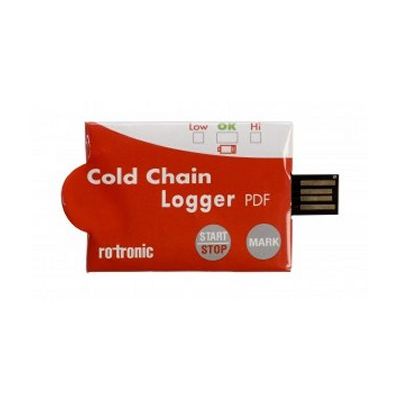

Cold Chain - Model TL-CC1 -Cold Chain Temperature Logger
The TL-CC1 cold chain logger is an ideal choice for monitoring and recording the temperature of sensitive goods during transportation and at exchange points. The TL-CC1 is perfect for pharmaceuticals, food and technical products. The logger is designed for single use only.
Most popular related searches
cold chain logger
cold chain temperature
humidity measurement
data logger
temperature logger
humidity logger
temperature recorder
alarm reporting
- Freely configurable by user – without software installation
- Clear alarm identification
- Automatic PDF report generation
- Everything in one logger: configuration file, PDF report, instruction manual and calibration certificate
- High storage capacity: 8,000 data point memory
- Manipulation-proof
- Conforms to GxP, EN 12830 and FDA 21 CFR Part 11 / GAMP 5
- Delivery in box of 10 with instruction manual: TL-CC1-10
- TYPE OF LOGGER: Single use
- PARAMETERS: Temperature
- RANGE OF APPLICATION: -30…70 °C / -22...158 °F / < 80 %RH
- ACCURACY: ±0.5 °C (-30…70 °C)
- RESOLUTION: 0.1 °C
- BATTERY: CR2032 (not replaceable)
- LOGGING INTERVAL: 0.5/5/10/30/60/90/120 min
- START DELAY: 0.5/5/10/30/60/90/120 min
- ALARM RANGES: -20…-10 °C, -10…0 °C, 2…8 °C, 0…15 °C, 0…25 °C, 15…25 °, freely selectable values
- ALARM TYPE: Deactivated, single or cumulative
- STORAGE PERIOD: 12 months
- STORAGE CAPACITY: 8192 data points
- MARK FUNCTION: Marking of up to 8 points during transport
- OPERATION: START/STOP button, MARK button
- LED INDICATORS:
- LED “Low” flashes red when value below alarm point
- LED “Hi” flashes red when value above alarm point
- LED “OK” flashes green during data logging
- LED “Battery” flashes red when low battery
- OPERATING SYSTEM: Windows
- COMMUNICATION INTERFACES: USB
- IP PROTECTION RATING: IP65 (when placed in plastic bag)
- CONFORMITY: GxP, EN 12830, FDA 21 CFR Part 11 and GAMP5
- DIMENSIONS: Without bag: 80(L) x 43(W) x 2.5(D) mm with bag: 105(L) x 55(W) x 2.5(D) mm
- WEIGHT: ≈ 10g
