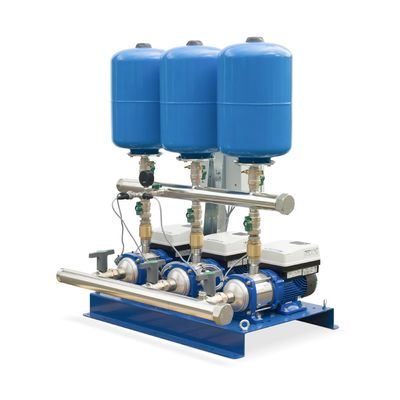

Dutypoint - Model VG -Cold-Water Booster Set
The Dutypoint VG is a compact, cost-effective cold-water booster set that is ideal for a wide range of residential and commercial applications. Despite its compact design, the Dutypoint VG includes technology normally associated with larger booster sets, including fault signals, BMS integration, error code display and a full-size control panel as standard. The addition of high-efficiency pumps with permanent magnet motors allows class-leading IE5 energy efficiency, reducing running costs.
- IE5-rated permanent-magnet motors for highly efficient operation
- Low-water cut-out contacts in panel
- Anti-vibration mounts reduce system noise
- Error code display allows simple fault diagnosis
- IP55-rated control panel allows for simple and safe maintenance
- Cyclic duty changeover ensures even wear across pumps
- Common fault volt-free contact for connection to building management systems
- External start/stop contact for connection to external control systems
- RS485 connections for connection to Modbus
Range Performance
Number of pumps: 1,2 or 3
Flow range: 03 -16.5 l/s
Pressure range: 1.5-15 bar
Max system pressure: 16 bar
Controller type: Motor-mounted smart controller
Max system temperature: 40°C*
Noise data: Motor at 3600 rpm < 70LpA {dB +/-2)**
*Higher temperature options available; please contact the sales team. **More specific details available on request.
Material Specification
Manifolds: AISI 304 stainless steel
Isolation valves: Nickel-plated brass
Non-return valves: Brass
Pressure transducers: AISI 304 stainless steel
Pump casing: AISI 304 stainless steel
Pump impellers: AISI 304 stainless steel
Mechanical seals: Silicon carbide, graphite, EPDM
Pressure vessels: WRAS approved
Base plate: Powder-coated mild steel
