Elis-Plzen - Model ELISTHERM ET3010.0 - ...

Elis-Plzen - Model ELISTHERM ET3010.0 -Cold Water Meter System

FromElis Plzen a. s.

SHARE

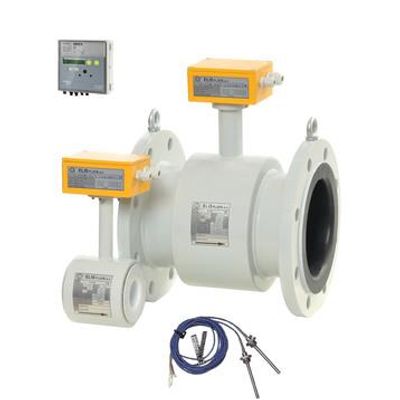

ELISTHERM ET3010.0 absolute heat or cold water meter system is used to measure the energy required for the production or consumption of heat and cold in customer installations. The ELISTHERM ET3010.0 heat and cold meter system consists of a calorimetric counter, a pair of resistance sensors and an electromagnetic flow meter and measures absolute heat/cold energy in closed systems with hot or cold water.

Most popular related searches

water metering system

cold water meter

electromagnetic flow meter

metering system

water monitoring

resistance thermometer

The system includes a calorimetric counter, a pair of resistance sensors Pt100 or Pt500 and an electromagnetic flow meter FLONET FN50xx.2
It measures absolute heat/cold energy in closed systems with hot or cold water
The results measured by the flow meter and resistance thermometers are stored in a calorimetric counter, which calculates the consumed or supplied heat or cold
ELISTHERM ET3010.0 heat and cold meter measures the water temperature in the inlet and return pipes using paired Pt100 or Pt500 resistance temperature sensors
The flowed volume of water is measured by electromagnetic flow meter
Electromagnetic flow meter FLONET FN50xx.2 measures liquids in temperatures from 0 to 150°C (302°F), in this range works also ELISTHERM ET3010.0 heat/cold meter
The accuracy of ELISTHERM ET3010.0 heat/cold meter is equal to Class 2 according to the EN 1434 standard, which ensures high quality
Installation of flow meter is possible on the inlet and outlet pipe
The flow meter is powered from electrical network
The calorimetric counter of the cold meter can be powered from electrical network or even from a battery
