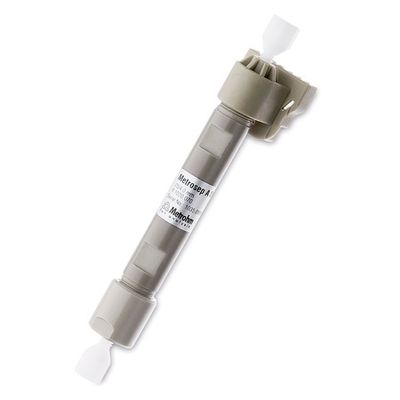

Model Metrosep A Supp 10 - 75/4.0 6.1020.070 -Column
FromMetrohm AG
The Metrosep A Supp 10 - 75/4.0 separation column is based on a high-capacity polystyrene-divinylbenzene copolymer with a particle size of only 4.6 µm. Under standard conditions, phosphate elutes between nitrite and bromide. Currently, applications can be optimized by modifying temperature, composition of the eluent and flow.
Most popular related searches
particle sizing
air analysis
chromatography column
ion chromatography
column chromatography
chromatography
perchlorate
nitrate analysis
The capacity of the A Supp 10 - 75/4.0 has been optimized with respect to two aspects: matrix and speed. Baseline separation is achieved in samples with high ionic strength, e.g., for phosphate in cola beverages. Even in the presence of large quantities of nitrate and sulfate, the analysis time remains less than 7.5 minutes. High sample throughput is also of great importance in air analytics.
- Carrier material: Polystyrene-divinylbenzene copolymer with quaternary ammonium groups
- Column capacity:
- 22 µmol (Cl–)
- Column dimensions: 75 x 4.0 mm
- Eluents:
- Carbonate eluent (standard eluent)
- Sodium hydrogen carbonate: 5.0 mmol/L; 840 mg/2 L
- Sodium carbonate: 5.0 mmol/L; 1,060 mg/2 L
- (column temperature 45 °C)
- Cola eluent
- Sodium hydrogen carbonate: 0.4 mmol/L; 67 mg/2 L
- Sodium carbonate: 8.0 mmol/L; 1,695 mg/2 L
- (column temperature 30 °C)
- Carbonate eluent modified:
- Sodium hydrogen carbonate: 5.0 mmol/L; 840 mg/2 L
- Sodium carbonate: 5.0 mmol/L; 1,060 mg/2 L
- Sodium perchlorate: 5 µmol/L; 1.2 mg/2 L
- (room temperature)
- Housing material: PEEK
- Max. pressure: 25 MPa
- Maximum flow: 2.0 mL/min
- Organic modifier: 0 - 100%
- Particle size: 4.6 µ (mono dispersive)
- pH range: 0–14
- Standard flow: 1.0 mL/min
- Temperatur range: 10–70 °C
