BDN -Â Model CA-X -Combined Datalogger For Engine Development
Internal combustion engine development – whereas it is gasoline, diesel, hydrogen or synthetic fuel – is a complex task. BDN Automotive aims to help developers by having all the data on one machine, on a combined datalogger!
Most popular related searches
type k thermocouple
combustion analysis
data logger
temperature monitoring
pressure monitoring
pressure sensor
exhaust gas monitoring
thermocouple
gas monitoring
exhaust monitoring
COMBUSTION ANALYSIS
- IMEP, rate of heat release and mass fraction burned calculation up to 20.000 RPM
KNOCK DETECTION
- From cylinder pressure, and built-in knock-sensor channels
INTAKE - EXHAUST PRESSURE
- High frequency pressure sensor inputs for all intake and exhaust ports up to 8 cylinders
WIDE BAND O2*
- Wide band Lambda (AFR) logging using BOSCH CJ125 microcontroller, compatible with LSU4.9 and LSU4.2
K-TYPE THERMOCOUPLE*
- Standard K-type thermocouple logging for exhaust gas temperature measurement
CAN COMMUNICATION
- Sending cycle parameters, AFR and temperature real time as a standalone device
Combustion analysis is a state-of-the-art investigation method relying on high-frequency in-cylinder pressure measurement in an internal combustion engine.

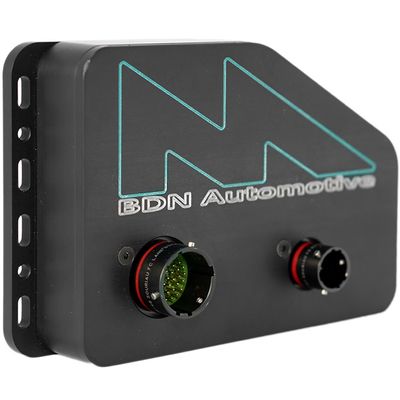

The CA-X features a robust IP67 rated housing with industry standard MIL Spec connectors, and the following features up to 8 cylinders.
Free easy to use combustion analysis software with logging and data analysis capabilities
All-in-1
No more hassle with industrial equipment, tons of wires, amplifiers or datatypes. All engine development tools in one box!
Compact size
The CA-X fits everywhere, even into a racecar or motorcycle, and works as a standalone unit,
without a PC connected!
