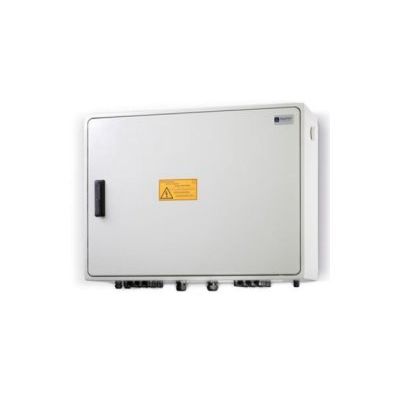

ArrayGuard - Model 1500 VDC -Combiner Box
In terms of its design the ArrayGuard 1500 VDC is identical to our ArrayGuard. However this model connects up to 24 PV strings with an even higher output of up to 1,500 VDC.
Most popular related searches
- Collection of 8, 12 or 16 PV generator strings (16, 24 or 32 with double assignment) to one DC main cable
- Precise acquisition of
- string currents in 8, 12, 16 measuring channels up to ±25 A
- system voltage and sytem voltage against earth potential up to 1,500 V DC
- Integrated temperature measurement
- Field bus connection for the acquisition of measuring data via CAN Bus and CANopen pro- tocol (option: RS485 and MODBUS protocol)
- PV strings connected through threaded cable glands and disconnect terminals
- String fuses on the
- positive poles, or
- positive and negative poles
- Integrated DC main switch including auxiliary contact monitoring
- Integrated DC overvoltage arrester including status monitoring
- Cabinet with venting valves
- Made for reliable outdoor operation throught its long lifetime
