BDN - Model CA-6 -Combustion Analyser

BDN’s CA-6 now gives you the opportunity to make it all happen without blowing off your cost budget! Real state-of-the-art technology available to everyone!

What is BDN CA-6 Combustion Analyser?

The world`s first compact internal combustion engine development system designed for OEMs, tuners, race teams, or enthusiast individuals. An F1 high-tech technology on an affordable price.

Have you ever wondered about

Speed up engine development
Decreased development cost
More precise knock detection
Maximised performance with increased safety and durability
Optimised engine power to efficiency ratio
Work with advanced technologies without complexities

6 pressure transducer inputs:

Our analyser is compatible with piezoelectric and pre-conditioned sensors (Beru PSG, Optrand, Mazda), which you can use to measure cylinder or liner pressures as well

0.1° resolution

up to 12.000 RPM using oem trigger wheels

Knock detection:

Knock is not binary, it always exists. With our analyser you will be able directly measure the pressure oscillation caused by auto-ignition, quantify it, and set your own safety limitations for knock amplitude

IMEP calculation

(represents net torque)

Mass fraction burned,

Combustion duration, rate of heat release calculation

Extreme durability:

IP67 rated CNC machined billet aluminium housing with MIL Spec connectors

CAN communication:

CA-6 sends all the essential cycle parameters (IMEP, MFB5, MFB50, MFB95, Peak pressure, Knock peak) to external loggers over CAN

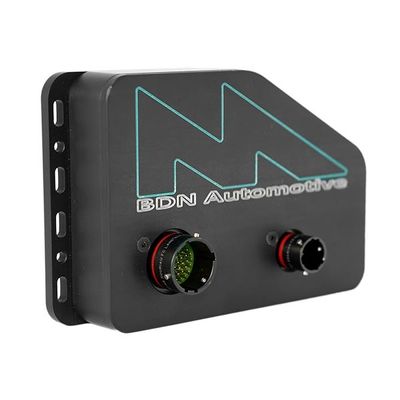

BDN CA-6 Combustion Analyser
USB Cable
37 Terminal Motorsport connector for the wiring loom (no need to return)
Engineering support and consultancy
Free software with regular updates
Personalised product development based on your feedback
