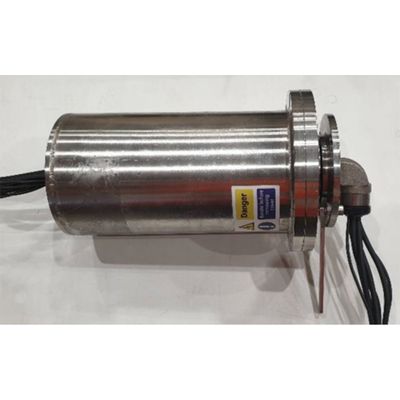

Feritech - Model FT0313 -Compact Configurable Slipring
The FT313 is a compact, rugged slip-ring assembly that is designed for harsh operating conditions. It has configurable channels for power and signal feed-through and is capable of up to 32A per contact. It is made from 316 grade stainless steel, so is perfectly suited to the harsh offshore environment that it has been designed for.
47 -63HZ
Supply frequency
3 -Phase
Supply
250 kg
Maximum Load
- 0-2000V AC/DC (higher on request)
- 2 – 50 channels
- 5, 8, 16 or 32 Amperes per channel
- 200RPM Max rotation speed (higher on request)
- Tapped cable entry (with or without 3-metre leads at each end) or option of plug and socket connector
- Sealed to IP66
- Custom adapter plates available to fit most winches.
