STRATE Technologie für Abwasser GmbH

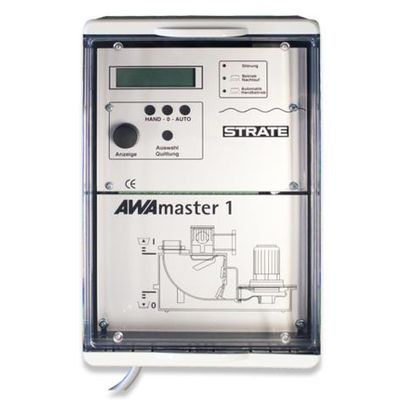

STRATE - Model AWAmaster 1 -Compact Control System
The compact control system with micro-processor technology for controlling STRATE sewage pumping stations with one pump and an installed motor rating of up to 5,5 kW. Particularly suitable for building services engineering (single systems) and do not require a separate control cabinet.
Most popular related searches
compaction system
sewage pump station
pump station
flood alarm
control cabinet
sewage pump
float switch
sewage
sewage controller
- Compact control system AWAmaster 1 in plastic housing
- Ready for connection with 1.5 m cable and CEE plug 16 A, 5-pole
- LCD plain text display
- Thermal and electrical monitoring of the motor
- Manual – 0 – Automatic function
- Pump switch-off through time or switch-off point
- Acknowledgement button
- Operating hours counter
- Ammeter
- Electronic monitoring of the motor current
- Forced pump switch-on
- Variable graduated start-up (switch-on delay)
- Internal acoustic alarm
- Collective fault message potential-free and potential-bound
- Flood alarm potential-free
- All settings and fault messages retained after power failure (battery back-up not required)
- Reserve inputs for float switch, telecontrol module or other (are only equipped if necessary and integrated in the program)
- Input for locking the pumping station
