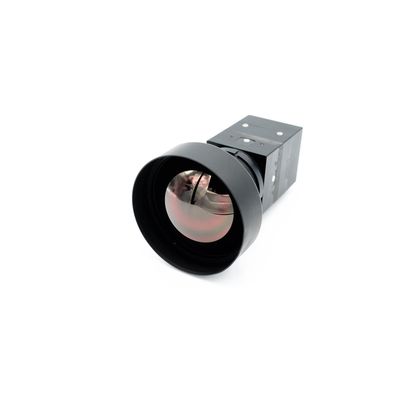

CamSight® - Model HD -Compact Core Camera
CamSight HD is Bertin’s latest OEM IR camera. Equipped with LYNRED’s ATTO1280 infrared sensor (1280 x 1024@12µm pitch), it offers real time, freeze-free image delivery over a wide range of light level conditions, in both day and night environments. This OEM optronic module sets new standards for size, weight and power (SWaP), while providing outstanding high definition images. CamSight HD is thus particularly adapted to demanding applications such as ground or airborne intelligence, surveillance, identification and reconnaissance.
Most popular related searches
Designed by Bertin Photonics, CamSight© HD is an Original Equipment Manufacturer (OEM) digital core camera ideal for embedding into complex optronic devices. Equipped with LYNRED ATTO infrared sensor, CamSight© HD
represents the best in Bertin’s high-performance uncooled thermal imaging technology within a small, lightweight, and low-power package.
Sensor:
- ATTO GEN2 (by LYNRED)
1280 x 1024@12μm pitch
Bandwith:
- LWIR (8-12μm)
HFoV (°):
- 95 / 56 / 46 / 28 / 24 / 17 / 15
(More on demand)
NETD:
- < 50mK @ F#1/1.0
Consumption:
- < 3 Watts
Video outputs:
- HD-SDI@25Hz
Time to image:
- < 3 seconds
Dimensions:
- Core: 55 x 40 x 40 mm
60 mm SUP: 72 x 43 x 43 mm
Weight:
- Core: 162 g
60mm SUP: 350 g
