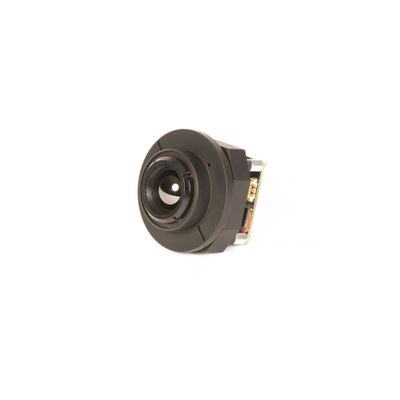

CamSight® - Model LP(HS) -Compact Core Camera
Based on the CamSight IR technology, this ultracompact version is low power consuming and can be installed in the most constraint environments. The camera is equipped with the latest ULIS infrared sensor. It comes with an uncooled system and a shutterless technology that allows for real time freeze-free image delivery.
More about this product— External link
Most popular related searches
CamSight© LP(HS) is an Original Equipment Manufacturer (OEM) digital core camera produced by Bertin Photonics. This camera can be integrated within complex optronic systems.
Ultra-compact, CamSight© LP(HS) is very lowpower (less than 1 Watt) to be implemented even in constrained environments. The camera is equipped with the uncooled PICO GEN2(S) LYNRED infrared sensor.
Sensor:
- PICO GEN2(S) (LYNRED)
640 x 480@17µm pitch
Bandwith:
- LWIR (8-12µm)
HFoV(°):
- 90 / 57 / 32 / 25 / 18 / 11 / 10 / 8
(More on demand)
NETD - CamSight© LP:
- < 50mK @ F#1/1.0
NETD CamSight LP© (HS):
- < 30mK @ F#1/1.0
Consumption:
- <1W
Video outputs (Digital and/or analog):
- SD-SDI / Progressive PAL GigE Vision
Time to image:
- <1.2s
Dimensions:
- OEM version: 46 x 46 x 29mm
Casing version: 60 x 60 x 65mm
Weight:
- OEM version: 60g
Casing version: 188g
