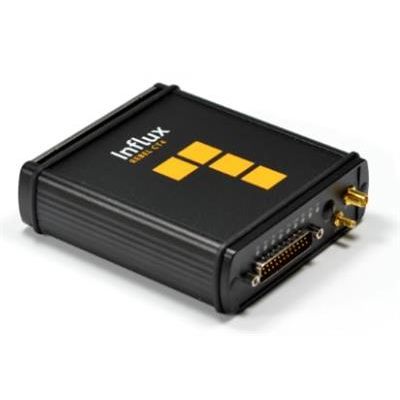

Influx Rebel - Model CT4 -Compact Data Logger

The Rebel CT4 compact data logger is a modular and configurable pocket sized data logger ideal for applications which require vehicle network data. It is expanded to include GPS, accelerometer, Wi-Fi and GPRS.

Most popular related searches

data logger

portable data logger

accelerometer

dust cover

4x CAN buses
1x K-Line
2x LIN buses
4x digital I/O channels
4x analog input channels (calibration tool supplied)
Connects to Module Analyser for on-line CAN Analyser functionality
J2543 Pass thru drivers available
SDHC card data storage max size 128GB
IP65 dust and splash proof cover – SD card securely housed behind a flip panel
Supplied with Dialog Configurator, freely distributable data logger configuration application for Windows

Internal 18Hz GPS with socket for external antenna
Internal 1kHz XYZ accelerometer +/-16G max
Internal Wi-Fi Module
Internal 3G Modem

All Influx Technology products are developed and supported by our dedicated and highly experienced team.

Influx Rebel - Model CT4 -Compact Data Logger

Features

Optional Internal Upgrades
