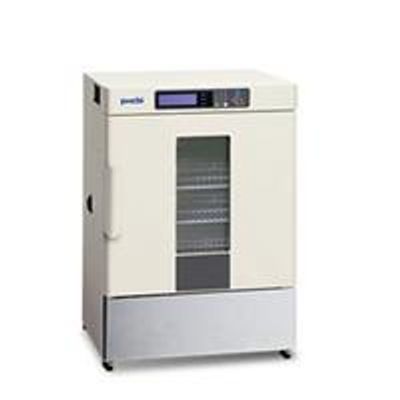

PHC - Model MIR-154-PA -Compact Microbiological Incubator
The MIR-154-PA compact microbiological incubator is recognized as an exceptional unit suitable for a wide range of applications that require a temperature range of -10°C to +60°C. Programmable models include three-step functions useful for investigations involving microbiology, plant cell biology and more.
The PHCbi compact microbiological incubators offers accurate temperature control and consistent uniformity making them suitable for laboratory culturing, industrial incubation and various testing applications.
Wide Temperature RangeThis plant cell biology incubator offers accurate temperature control and uniformity in wide temperature ranges (-10°C up to +60°C) with excellent chamber uniformity. The microprocessor allows for precision temperature control combined with a heater PID and compressor ON-OFF system. With a feed forward function that inputs the operating conditions of the compressor beforehand, the system ensures accurate temperature control for the chamber.
Ergonomic Cabinet DesignThe MIR-154-PA features improved usability with a modern design, reversible door, adjustable low vibration and gentle air circulation that reduces media drying.
Microprocessor ControlsThe MIR Series compact microbiological incubator has an 8-bit microprocessor controller for heat and refrigeration control +/-2°C. This compact microbiological incubator is completely programmable, allowing for direct numeric input with memory of operation, start dates and hours, clock mode and timer. The LCD control improves user interface for better programming and control.
Memory BackupShould the power source be interrupted due to power failure or other event, programmed data remains stored in memory semi-permanently. When the power source is restored, operation can be continued according to the predetermined program.
Programmable Operational FunctionsProgram input is simple and accommodates a range of diversified experimentation requirements. It is ideal for night time or weekend experimentation or experimentation that requires setting changes. It is also ideal for microorganism cultures and preservation.
- EFFECTIVE CAPACITY 4.34 cu.ft. (123 L)
- EXTERIOR DIMENSIONS 27.6" W x 22.8" D x 40.1" H (700 x 580 x 1018 mm)
- INTERIOR DIMENSIONS 24.4" W x 14.5" D x 21.9" H (620 x 368 x 555 mm)
- DOORS Painted Steel
- INSULATION Rigid polyurethane foamed-in-place
- SHELVES AND SHELF DIMENSIONS Polyethylene coated steel wire, 3 pcs, adjustable. Dimensions: Upper 2 pcs, 22.4" x 11.8" (570 x 300 mm); Bottom 1 pc, 21.7" x 9.25" (550 x 235 mm); Max load: 44 lbs (20 kg)
- AIR CIRCULATION Forced air circulation
- ACCESS PORT 1: Left side (1.57" (40 mm) diameter)
- COMPRESSOR Reciprocated compressor. Output: 150 W
- TEMPERATURE CONTROL RANGE -10ºC to 60ºC (ambient temperature: 5ºC to 35ºC, no load)
- TEMPERATURE DISPLAY Microprocessor, PID Control (compressor; ON-OFF)
- TEMPERATURE UNIFORMITY ±0.5ºC (SV:37%, ambient temperature: 20ºC, no load)
- ALARMS High/Low temp alarm, independent over-heat/over-cool limiter
- NET WEIGHT 172 lbs (78 kg)
- ELECTRICAL REQUIREMENTS 160 W, AC 115 V, 60 Hz
- ENERGY CONSUMPTION 200 W
