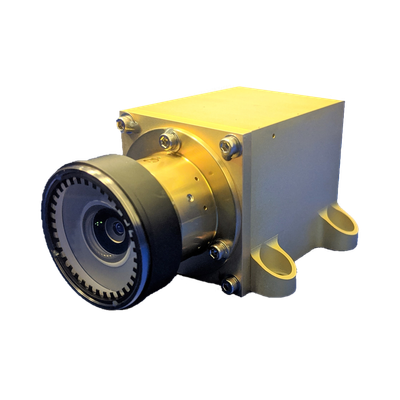

Not specifiedModel MCAM -Compact Space Camera

SHARE

The concept is a micro-system using a proven and mastered technology, which is an evolution of previous successful developments with large flight heritage. The result is a light and compact digital camera for operation in harsh environmental conditions. Highly miniaturized, this low mass and low power camera is multipurpose, modular and is a cost-effective solution for resource critical applications. This digital imager aims to be used, amongst others, for monitoring and health check of satellites, as imaging payload for observation satellites or for small and micro-satellites, as rover visual systems, but also for science instruments or any applications in harsh environmental conditions with limited resources. Its lightness and compactness is a valuable asset for tight payload mass & volume requirements.

Most popular related searches
  • APS sensor, 4 megapixels
  • Monochrome or colour
  • Space Optics HFOV > 83° or custom
  • 8-12 bit/pixel resolution
  • Snapshot and ideo operation
  • SpaceWire protocol
  • Power consumption: <2 W in snapshot
  • Operating range: −40°C to +60°C
  • Radiation (not including shielding): TID 35 krad, hardened by architecture against SEE
  • Mass: 320 g including optics
  • Dimensions: L x W x H = 85 x 63 x 45 mm3 including optics
  • Embedded image compression, auto-exposure, windowing, HDR etc.
  • Easy operation and data acquisition
