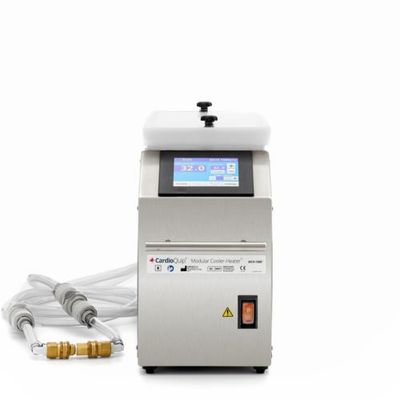

Model MCH-1000(m) -Compact Unit
The CardioQuip MCH-1000(m) delivers full-size cooler-heater performance in a compact footprint. Featuring a digital touchscreen, precision temperature controls, and modular customization, the MCH-1000(m) delivers the performance your patient needs and the simplicity you desire.
-
Best-in-class cooler-heater performance
-
Compact footprint
-
Low power mode allows for ease of transport
-
Simplified cleaning
-
2.5 gal (9.5 L) insulated, valved cold water tank keeps ice cold
-
1600W of heat offers more efficient rewarming.
-
Patented Adaptive Temperature Control accurately maintains the set temps with minimal operator intervention.
Modules and accessories include the optional Thermo-Electric Cooling Module which adds cooling ability and the all-new MiniCart, a stainless steel cart to transport your MCH-1000(m).
Dimensions (LxWxH): 19x9x16 in (48x23x41 cm)
Weight (empty/full/max): 45 lbs (20 kg) / 65 lbs (29kg) / 76 lbs (34 kg)
Water Capacity (min/max): 1 gal (3.8L) / 2.5 gal (9.5 L)
Cooling Medium: Ice (Optional: Thermo-Electric Cooling Module)
Water Path: Single
Maximum Flow Rate: (high/low) 20/14 lpm (5.3/3.7 GPM)
Maximum Pressure: 83 kPa/ 12 psi (closed loop, blocked flow)
Water Connections: Quick-connect, no-spill, two-way shutoff fittings. Hose kit included.
Temperature Control: CRange 0-42°C Accuracy ±0.5°C, Setting 0.1°
Power Consumption: Max Peak 1900W, Typ <1740W
Electrical: 115 VAC/ 60Hz, 16A (Class 1 equipment per UL 544)
230 VAC/ 50Hz, 10.4A (Class 1, Type BF equipment per UL 2601-1)
Operating Environment: 5-40°C, 0-90% humidity
MiniCart | MIN-11CRT
CardioQuip`s lightweight stainless steel MiniCart is designed to increase the portability of your MCH-1000(m) compact unit. The MiniCart is fully customizable to suit your specific needs.
Designed to transport MCH-1000(m)
Small footprint, easy to maneuver
Fully adjustable sliding shelf that locks into place
Medical Grade Casters
Dual Adjustable height infusion poles
Made in USA
Thermo-Electric Cooling (TEC) Module | MCH-11TEC
Want to prolong the life of your ice? The Thermoelectric Cooling (TEC) Lid Module replaces the lid on the MCH-1000(m) and provides 100W of thermoelectric cooling power.
An average patient at rest gives off about 100W of heat, so we designed the TEC Module to provide 100W of cooling to increase your cooling efficiency.
Wheelset Option | MCH-11WSO
Need to move your mini around? Add portability to the MCH-1000(m) with the Wheelset Option module. The wheelset option features fully lockable medical grade casters mounted on a stainless steel frame.
Dripless Hose Set | MCH-11DAM
In today`s perfusion climate, maintaining water quality in the OR is critical. The Dripless Hose Set offers dripless connectors at both ends to provide a clean and safe way to keep cooler-heater water away from the OR environment.
Communications Module | MCH-11COM
Provides RS-232 or ethernet communications capability to export cooler-heater parameters to electronic medical record systems (i.e. Epic & Cerner)
