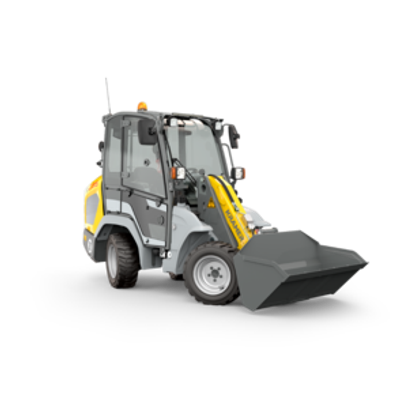

Kramer - Model 5035 -Compact Wheel Loader
The 5035, from Kramer`s compact class, is agile in its movement, dynamic in its power delivery and slim in its design. With its optimized power-to-weight ratio, low transport weight and consistently high payload, it is the ideal helper on construction sites in road building, civil engineering, horticulture and landscaping. With its dimensions, it is also predestined for low clearance heights and narrow passages. Due to a width of only 1.26 m, driving on a sidewalk is effortless. In addition, due to the low transport weight, the machine can also be transported on a car trailer and thus a quick transfer to different places of use is no problem.
Most popular related searches
wheel loader
LED beacon
position indicator
fire extinguishing
fire extinguisher
cabin air
compaction wheel
oil leak
beacon
hydraulic control system
- Front axle and crab steering: The crabwalk not only enables the optimal reaching of the obstacles but also keeps the constant distance in parallel.
- Comfortable cabin design: A wide entrance with additional step ensures comfortable and, above all, safe entry and exit.
- Loading system with Z-kinematics: The Z-kinematics enable large lifting forces as well as tearing forces and exact parallel guidance over the entire height. The visual position indicator for attachments is ideal for inexperienced operators.
- Openable cabin door: The generously designed window on the right side can be opened by 180 ° as usual. In addition to this, the cabin door can also be set up just so.
- Ergonomics: The side console, redesigned from the ground up, contains numerous storage compartments in addition to many functional and ergonomic features. All important switches are located in the grip area of the right hand.
Cab
- Rotating beacon (yellow)
- Rotating LED beacon (yellow)
- Cabin with heating
- Cabin with heating and rear window heating
- Two front working lights
- Document box (only available with Cabin)
- Air-suspended, comfort driver`s seat with lumbar Support (only available with Cabin)
Drive / steering system
- Tractive power increase
- Load stabilizer
- Automatic trailer coupling
- Ball coupling
- Numberplate light incl. front numberplate bracket
- 7-pole power outlet for rear attachments
- 100% differential lock
- Low-speed control and manual throttle
STVZO - equipment
- Numberplate light incl. front numberplate bracket
Engine
- Engine with higher output (Yanmar 27 kW/ 37hp)
- Fuel preheater (12 V)
Hydraulic system
- 3rd control circuit, electrically activated (s/w)
- Float position
- Single- Action additional control circuit for front and rear attachments
- Powerflow high-performance hydraulics, incl. leak-oil line and unpressurized return
- Powerflow high-performance hydraulics, incl. leak-oil line and unpressurised return; switchable
to single-acting auxiliary control circuit for rear-mounted accessories - Hydraulic system filled with biodegradable hydraulic oil; PANOLIN Synt46
Electrical system
- 4-pole socket for front attachments
- 7-pole power outlet for rear attachments
- Battery master switch
Safety options
- Hose burst valve for lift and tilt rams
- Backup warning system (acoustic)
- Red/white warning stripes (according to DIN 30710)
- Immobilizer integrated in ignition key
- Protective underbody panels
- Fire extinguisher (2 kg)
- Tyre puncture protection kit
- Protective measures for operation in aggressive environment (salt or fertilizer applications)
- V-belt protection
Other
- Special one-colour paint coating as per RAL instead of yellow
- Engine oil and hydraulic oil preheating (230 V)
- Tool set
360° all-round view
- Excellent all-round visibility thanks to large glass surfaces and narrow cab pillars
- Panoramic windshield for an optimum view of the attachment
Low cabin
- OpitimIdeal for use where there are restricted clearance heights
- Different cabin versions optionally available
- Complete comfort despite the low design
Color-coded switches
- Uniformed color scheme for hydraulic, electric, driving, and safety features
- Increased safety due to minimized danger of mixing up switches
- Operating concept that reaches across all models to simplify the handling of the fleet
Easy maintenance access
- Easy access to the engine compartment thanks to the wide-opening hood
- Optimum accessibility of all important components for checking fill levels
- Quick implementation of service work thanks to vertically mounted filters and additional maintenance openings
All-wheel steering
- High stability even at full steering lock thanks to the undivided frame
- Maximum maneuverability thanks to steering angles of up to 40° on both the front and rear axles
- Consistent payload independent of the steering angle for constant leverage ratios
