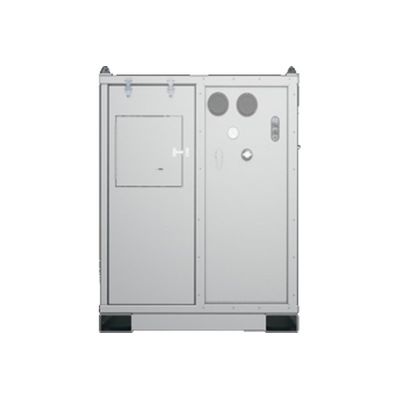

OFITE - Model OASys-EX -Completely Autonomous System
The OASys™ is a completely autonomous system that is fully capable of remotely monitoring the direct physical measurement of drilling fluid properties.
Most popular related searches
viscosity and temperature
safety containment system
safety containment
hydraulic calculation
remote monitoring
drilling fluid
safety container
secondary containment system
safety system
secondary containment
Features
- Continuous density, apparent viscosity, and temperature
- Full API rheologies, specified shear rates 3-600 RPM, PV, YP and Gels at controlled temperature set points (per user specifications and intervals)
- Data outputs provided based on data/rig system requirements (ethernet, serial, WiFi, WITS0, WITSML etc.)
- Fully automated cleaning cycles
- Redundant safety controls and alarming built in for safe operation and maintenance
- Secondary safety containment system with drain
- Small footprint (48” x 26” x 48”) Net Weight: 990 lb
Requirements
- 115 volt power 20 amp
- 120 psi air supply
- Standard 1" camlock hoses for sample in and out (hose lengths vary per installation requirements and placement)
- Cleaning fluid inlet port
Certifications
- ATEX and IECEx Certified
- Ex 60079-46 IIB T3 Gb
- Ex h IIB T3 Gb
- Rated for Zone 1
Options
- WiFi connectivity and external antenna
- Computer interface
- HWD Software package for Hydraulic calculations (ECD, Pressure Drop, cuttings removal efficiency, surge and swab, etc.)
