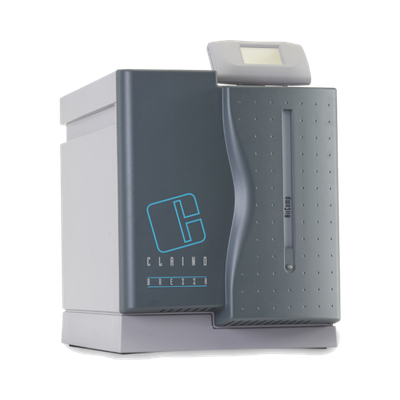

Claind - Model AirComp -Compressed Air Generator

SHARE

Designed for GC and Atomic Absorption. Provides 20 Nl/min of compressed from an 8 bar Oil Free compressor. Quiet: noise level reduced to a minimum thanks to special soundproof and anti-vibration devices. Possible parallel connection up to 4 stackable tower configuration generators. CPU with Touch Screen Display that can be linked to the generators with CAN-BUS, allowing monitoring of the operating status and menu reading with the maintenance status, the alarm report and functional parameters.

Most popular related searches

oil free air compressor

zero air generator

piston compressor

alarm reporting

air purification

air particulate

noise protection

FLOW RATE: 20 Nl/min ± 2 Nl/min up to 2000 m from the sea
TECHNOLOGIES EMPLOYED: Oil free piston compressor
OUTPUT PRESSURE: 0÷8 bar ± 3% (± 240 mbar)
AIR OUTPUT CHARACTERISTICS: Particulate = 0,01 µm
Moisture = -15° C dew point ATP
ELECTRICAL SUPPLY: 220 Vac ±10% 50 Hz 550 VA
INDEX OF PROTECTION: IP20
NOISE: < 55 dBA
OPERATING TEMPERATURE: 5°C - 40°C/40°F - 100°F
ENVIRONMENTAL HUMIDITY: max 90% without condensation
DIMENSIONS: Height: 40 cm + 7 cm (base) /15.8” + 2.8”
Width: 38 cm/14.9”
Depth: 53 cm/20.8”
WEIGHT: 25 kg/55 lbs
PNEUMATIC CONNECTIONS: Purified air output: G 1/8” female
