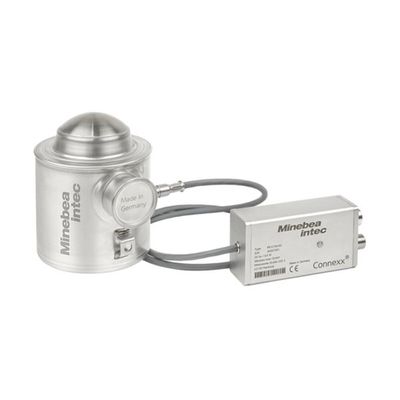

MinebeaIntec Inteco - Compression Load Cell
The load cell Inteco represents a consistent enhancement to the well-known PR 6201. With an output signal of 2 mV/V, additional load levels of up to 75 t, higher accuracy classes (C6) and high-quality stainless steel, it has a wider range of potential applications. Accuracy classes D1 (0.04%), C3 (0.015%) and C6 (0.008%). As a digital weighing solution with the converter Connexx®, the load cell Inteco offers fast signalling times and optimal transparency in dosing and weighing processes. The Minebea Intec mounting kits FLEXLOCK minimise the effect of movements on the weighing result at the same time.
Product type
- Load cell
- Silo and container weighing
Product handling
- Use analogue and digital
- installation kits and accessories identical to PR 6201
IP protection class
- IP 68
- IP 69
Material
- Stainless steel 1.4301
Fitted with the converter Connexx®, the load cell Inteco® offers a whole host of possibilities:
- The digital version guarantees fast signalling times for reliable dosing processes.
- Thanks to the use of field bus communication, the cable junction box is no longer needed.
- The standard interface CANopen ensures straightforward installation and calibration.
- CANopen allows for extra-long communication paths of up to 200 m.
- Weight values can also be generated individually – per load cell – meaning that defective load cells can be identified more easily.
