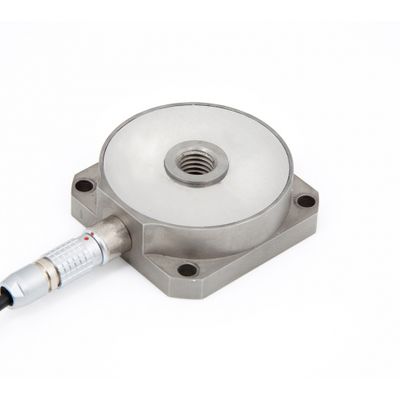

Sherborne Sensors - Model U2000 Series -Compression Miniature Load Cell
The compactness of the U2000 miniature load cell makes it ideal for applications where space is limited. The robust shear web design uses multiple strain gauges, strategically placed to counteract and minimise errors due to unwanted side or non-axial forces. The low deflection and high-frequency response are beneficial in high-speed measurements, especially where peak loads are being monitored.
- Load Range : 10kN, 1kN, 2.5kN, 25kN, 50kN, 5kN
- Load Cell Type : Low profile
- Use : Both, Compression, Tension
The compactness of the U2000 micro load cell makes it ideal for use in applications where space is limited. The robust shear web design uses multiple strain gauges, strategically placed to counteract and minimise errors due to side loads and non-axial forces. The extremely low deflection and high frequency response are beneficial in high-speed measurements, especially where peak loads are being monitored.
Features
- 18mm (0.7 inch) ultra low miniature profile
- 2.5 to 25kN versions
- Stainless Steel construction
- Integral electrical connector
- High frequency response
- Sealed to IP54
- Transient force monitoring
- Press force measurement
- Materials testing
- Miniature size ideal for use in any applications where space is limited
