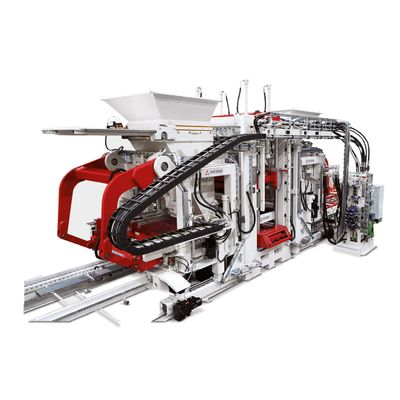

Multimat - Model RH 2000-4 MVA -Concrete Block Machine
This high end production machine combines many years of machine building experience with the latest proven M-Version technology to create reliable and repeatable performance levels for high quality concrete products. From the most exact dimensional tolerances to the strongest durability in concrete density, the smooth and easy operation of the M-Version RH 2000 production machine assures the greatest economic efficiency for the producer in his marketplace. The RH 2000-4 leads in performance levels where others cannot follow.
Most popular related searches
vibrating table
concrete block machine
pallet transportation
cooling tower
hydraulic lifting
hydraulic pneumatics
- Pallet depth minimum (mm): 1100
- Pallet depth maximum (mm): 1450
- Pallet width minimum (mm): 1300
- Pallet width maximum (mm): 1520
- Minimum manufacturing height (mm): 25
- Maximum manufacturing height (mm): 500
- Table vibration Variotronic, 1 table, pallet dept max. 1450 mm: Standard
- Table vibration Variofrequency, 1 table, pallet depth max. 1300 mm: Option
- Table vibration Variotronic, 2 tables, pallet depth 1150 mm and up: Option
- Table vibration Variofrequency, 2 tables, pallet depth 1150 mm and up: Option
- Standard hydraulics, Bosch-Rexroth: Standard
- MAC 8 control with 2 tamper head cylinders: Option
- MAC 8 control with 4 tamper head cylinders: Option
- Tamper head block height stop 4 pc. (with standard hydraulics): Standard
- Tamper head clamping, pneumatic: Standard
- Tamper head clamping, hydraulic (Non Hess machine moulds): Option
- Tamper head cross cleaner, straight: Option
- Mold clamping, pneumatic: Standard
- Hydraulic function for mold flaps: Option
- Electrical mold extension with pusher (for machines without face mix): Option
- Mold change, electrical: Standard
- Mold change crane: Option
- Hydraulic fast lift feeder (fast mold change): Option
- Horizontal adjustment table plate, electric: Option
- Coarse mix part, movable, including pneumatic clamping: Option
- Vertical adjustment table plate, electric: Standard
- Coarse mix silo 2 flapps: Option
- Coarse mix Colormix drawplate: Option
- Coarse mix silo, silo lining PA/Hardox: Option
- Coarse mix filler box pneum. Scraper: Option
- Agitator with cylinder drive: Standard
- Face mix, electrically movable, including pneumatic clamping: Standard
- Face mix Colormix drawplate: Option
- Face mix silo, silo lining PA/Hardox: Option
- Face mix filler box planing roller: Option
- Face mix filler box pneum. Scraper: Option
- Face mix filler box rotating brush (tamper head cleaning): Option
- Drawplate device build in pallet transport: Option
- Drawplate device hydraulic / core pulling device: Option
- Core pulling device, separately: Option
- Styrofoam inserter, swivelingr: Option
- Cooling tower for hydraulics: Option
- Emergency operation hydraulics function: Option
