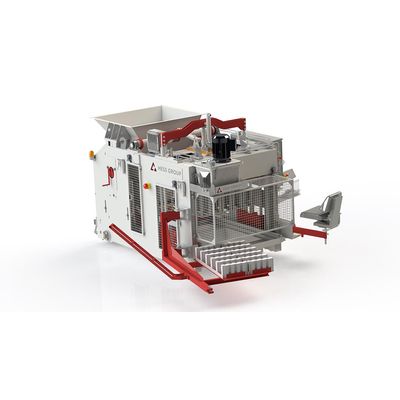

Multimat - Model BF 80-2 H -Concrete Block Machine
Mobile egg-layer execution that offers flexibility. The HYDROMAT BF 80-2 H includes: Mechanical safety devices and visual warning devices, collision protection, mechanical load and filling carriage safety device (for maintenance work/ mould change). Steering: steering wheel drive connected to drive axle via gearbox, hydraulic lifting device for steering wheel. Filling carriage with central drive via 1 hydraulic cylinder with wiper on both sides for optimum, clean mould filling. Mould and tamper head guided on 4 columns. Demoulding via central hydraulic cylinder and guidance on 2 columns. Two tamper head vibrators and two high efficient mould vibrators.
- Easy mould change due to automatic centring device
- Level control for filling car/ filling car rails, filling car table/ concrete silo by winches. All devices are adjusted simultanesously with 2 manual winches when the mould height is changed
- Spring-loaded, adjustable seat for operator
- Adjustable sunshade directly above the operator
- Abrasion-resistant and dynamically loadable polyurethane wheels to protect the production surface
- Dirt deflector brushes in front of wheels
- Large rear-view mirror for lane control
- Pressure gauge for checking the hydraulic pressure
- Usage of moulds from the existing BF 80 machines possible
- The electric control with the standard backage is executed as a conventional control with only contactors
Mobile egg-layer execution for the production of
- hollow blocks
- solid blocks
- insulated blocks
- hourdi blocks
- curb stones
- chimney blocks
- palisades
- Production area (mm): 1,250 x 1,000
- Production height (mm): min. 190 | max. 330
- Tamper head vibration: 2 frequency vibrators, each1,1 kW
- Mould vibration: 2 high frequency vibrators HESS, each 1,5 kW
- Concrete hopper (l): 1,000
- Hydraulic pressure (bar): 190
- Travel gear: Gear motor
- Connected load (kW) : 18
- Weight (kg): approx. 5,800
- Control: Conventional electric control with contactor, for easy maintenance
- Hollow block (mm): 200 x 200 x 400
- Production per cycle: 12 pieces
- Produktion pers shift/ 8 hours: approx. 10,000 pieces
*Production capacities are calculated on 85% basis and depend on machine configuration, used recipes, raw materials, pallet handling, mold characteristics as well as utilized production boards. Technical Data are subject to change. **other production board sizes available.
- Electric Control with CPU
- Semi-automatic control by modern SIEMENS TIA-CPU including gear drive motor with integrated inverter
- Equipped with a 4" TFT colour display in the control cabinet for convenient setting of all machine parameters. Indications and fault messages are displayes in plain text
- Frequency converter for smooth acceleration and decelation of the travel motion
- Braking of the tamper head and mould vibrators if effected by an electonic braking device
- Monitoring of the mechanical safety devices by 2-channel safety switches
- Ergonomic control of the main functions by hydraulic hand levers
- Polystyrene insert device
- 4 mould vibrators
