Bid-Well - Model CP-240 -Concrete Placers
FromTerex

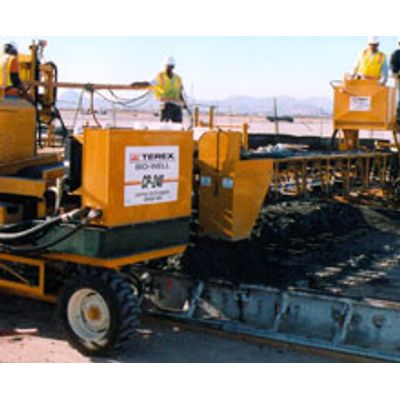

The Bid-Well CP-240 Concrete Placer side discharge conveyor is ideal for placing concrete ahead of a paver at various depths. The conveyor places all types of concrete and free-flowing materials. Operator-controlled from feeder to placement. On jobsite movement with pneumatic tire drive or form riding, the CP-240 will meet all your job requirements and needs.
Most popular related searches
- Concrete placer side discharge conveyor with standard tilt-up feeder end (supported by two 20.5 x 8 x 10 pneumatic tires)
- Maximum spreading width—60 ft (18.6 m)
- Oil reservoir—55 gallon (208 L) * filtration-3 micron * fuel-55 gallon (208 L)
- 87 HP (116 kW) diesel engine
- Pump one dual-stage main pump—50 GPM (189 LPM) @ 2,500 RPM
- Triple-stage pump with optional feeder conveyor—65 GPM (246 LPM) @ 2,500 RPM
- Elevated at opposite end of engine for better visibility, quieter operation and total operator control
- Belt—24 in (0.60 m) wide
- Speed—0 to 700 FPM (213 MPM) (variable speed)
- Idler rollers—precision roughing
- Discharge from either side
- Dual #2050 chain drive
- Four-wheel drive—skid steer 10 x 16.5 x 8-ply pneumatic tires (180 degrees pivotal wheel for additional span, movement and tire position)
- Operator end steerable
- Placer can be traveled on jobsite without being towed or trailered
- 24 in (.60 m) deep all-welded structural angle iron truss design
- Pin-connected sections for easy assembly
- Frame sections are 18 ft (5.5 m), 15 ft (4.6 m), 12 ft (3.65 m), 6 ft (1.8 m), and 3 ft (0.9 m)
- Belt—24 in (0.60 m) wide
- Speed—0 to 700 FPM (213 MPM) operator controlled
- Movement—powered by hydraulic motor (speed controlled) ground operated independently from main conveyor for forward and reverse movement
