Transmitter

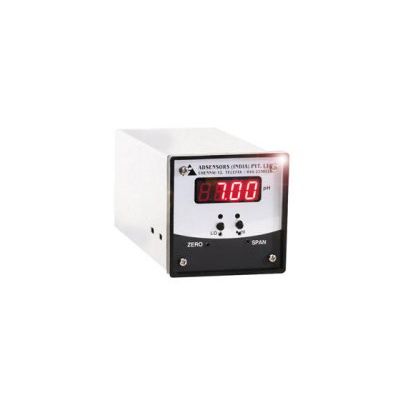

Panel mounted AQUA model pH Indicator is cost effective. Ideal for water treatment Plant and RO plants. 980 AP I come with isolated 4-20 current output. 980 AP 1/2 Comes with Controller outputs.

Most popular related searches

water treatment plant

pH indicator

reverse osmosis plant

water treatment

conductivity indicator

conductivity controller

conductivity transmitter

Parameter

Conductivity

Range	0-100 /0-1000 /0-10000 /0-100000 uS or any range on request
Accuracy	0.50%
Resolution	1 uS(Based On Range)
Zero Adjustment	+/- 15% of Zero
Span Adjustment	+/- 15% of Span
Temperature Compensation	Automatic upto 100°C
Temp. Coefficient setting	0.1 to 3% per °C
Enclosure	Panel Mountable 96X96X150 mm
Explosion Proof Enclosure	On Request
Current Output	4-20 mA Isolated into 600 ohms resistive load

Alarm Output

1 or 2 as option

Model 980 AC I/1/2 -Conductivity Indicator/Controller/Transmitter

Specifications
